ハードフロントAアームエイドセット /タミヤCカー用
¥4,070($25.74)
International shipping available
この商品は1点までのご注文とさせていただきます。
2007年より再販を続けている、タミヤCカーシリーズ
単純と思われるシャーシ構造の中に、ロマンがたくさん詰まっているCカー。
販売当時とシャーシ構造が同じだからこそ、
奥が深く味わい深い１台です。
そして！
レイテックサーキットで開催される
【2025 ロマン2.4h グループP（OP搭載クラス）】で
使用可能と言う大変光栄なパーツ指定を頂きました！
：開発コンセプト：
コース周回中にコーナーにヒットして、フロントAアームが曲がり、
プライヤーで戻すも、キャンバー角度もキャスター角度もガタガタになりサポート商品を待つ日々。
そんな悲しい時間を極力減らすと、それはエンジョイRCライフだ！
が、開発コンセプトです！！
F1シャーシよりは、フロントタイヤに直接ヒットさせることは少ないですが。
それでもヒットの際は、ステアリングを切っていることが多くAアームへの負担は大きいです。
万が一曲がってしまっても、プライヤーなどで戻せるのですが成形品の寸法に戻す事は不可能でした。
更にDDの挙動を一度ヒットしたAアームで制御するのは至難の業と思っております。
ズバリ！転ばぬ先の杖です。
もとい！曲がる前のAアームエイドです！
本商品は、お持ちのフロントAアームに追加工が必要ですが、
取り付けて剛性が上がるのでコーナー時の過重と挙動が、
タイヤ→アップライト→アップライトスプリング→アームと、
順に伝わることで、マシンの挙動がわかりやすくなります。
そしてセッティングも順を追って確認できるので、ますますCカーが好きになると思います。
そんな私も、そのうちに一人ですし。
過度にヒットしてしまっても、Aアームの曲がりは極端に少なくなります。
取り付け後に、マシンセッティング変更が必要になる場合がございます。
※全ての衝撃から守るものではありません。
※ For international shipping inquiries, please contact me directly through BASE messaging!
（BKHFA LR1）
タミヤ Cカー用。
左右セット。
組み立て難易度は★★★★★（レベル5です）
※フロントAアームに追加工が必要です。
Φ３でのドリル貫通作業とリーマー加工を推奨します。
：装着による確認される効果：
・軽度のフロント部ヒット時のAアームの曲がり低減。
・主にコーナーでかかる荷重挙動がわかりやすくなる。
・剛性UP
・Tバーのセッティング変化がわかりやすくなる。
材 質：SUS304
板 厚：1．0ｔ
寸 法：40mm×20mm
内容物：ハードフロントAアームエイドセット（右・左各１個）
対 応：タミヤCカー TAMIYA Group C Car
付属品：①M3x28六角穴付きボルトx2、②インシュロック×2
③ナット×2 ④スプリングワッシャ×2
発 送：クリックポスト250円
仕 様：板金部品には製品面に加工上傷が入ることがあります。製品上問題はありません。
仕 様：取り付け後にマシンセッティング変更が必要になる場合もございます。
仕 様：対象シャーシへの取付は付属のネジをご利用下さい。
仕 様：お持ちのフロントアームにキリでの追加工が必要となります。
推奨はΦ３のキリです。大きすぎる穴はガタの原因となります。
加工実績から最大径で3.2ｍｍとなります。（多少ガタあり）
Hard Front A-Arm Aid Set / For Tamiya Group C Cars
The Tamiya Group C series has continued to be reissued since 2007.
At first glance, the chassis structure may seem simple.
But inside that simplicity is a huge amount of character, history, and pure RC romance.
And because the basic chassis structure remains essentially the same as when these cars were originally released, they still offer incredible depth and enjoyment even today.
And now, we have some very special news.
This part has been officially approved for use in the:
“2025 Roman 2.4h Group P”
OP-equipped class
held at Raytech Circuit.
It is a great honor for us to have this product recognized as an eligible part for the event.
Development Concept
Imagine this:
You are running laps at the circuit.
You clip a corner.
The front A-arm bends.
You try to straighten it back with pliers, but now the camber angle and caster angle are both out.
And then you are left waiting for replacement or support parts before you can really enjoy the car again.
I wanted to reduce those frustrating moments as much as possible.
Because fewer broken parts and less downtime means more time enjoying RC.
That is the basic development concept behind this product.
Compared with an F1 chassis, direct impacts to the front tires may happen less frequently on a Group C car.
But when an impact does happen, the steering is often already turned.
That can place a surprisingly large load on the A-arm.
If the A-arm bends, it may be possible to bend it back with pliers or another tool.
However, returning it precisely to its original molded dimensions is extremely difficult.
And with a direct-drive chassis, trying to control the car accurately using an A-arm that has already been bent once can become very difficult.
So this product is, quite simply:
A little prevention before trouble happens.
Or rather…
An A-Arm Aid before the arm bends!

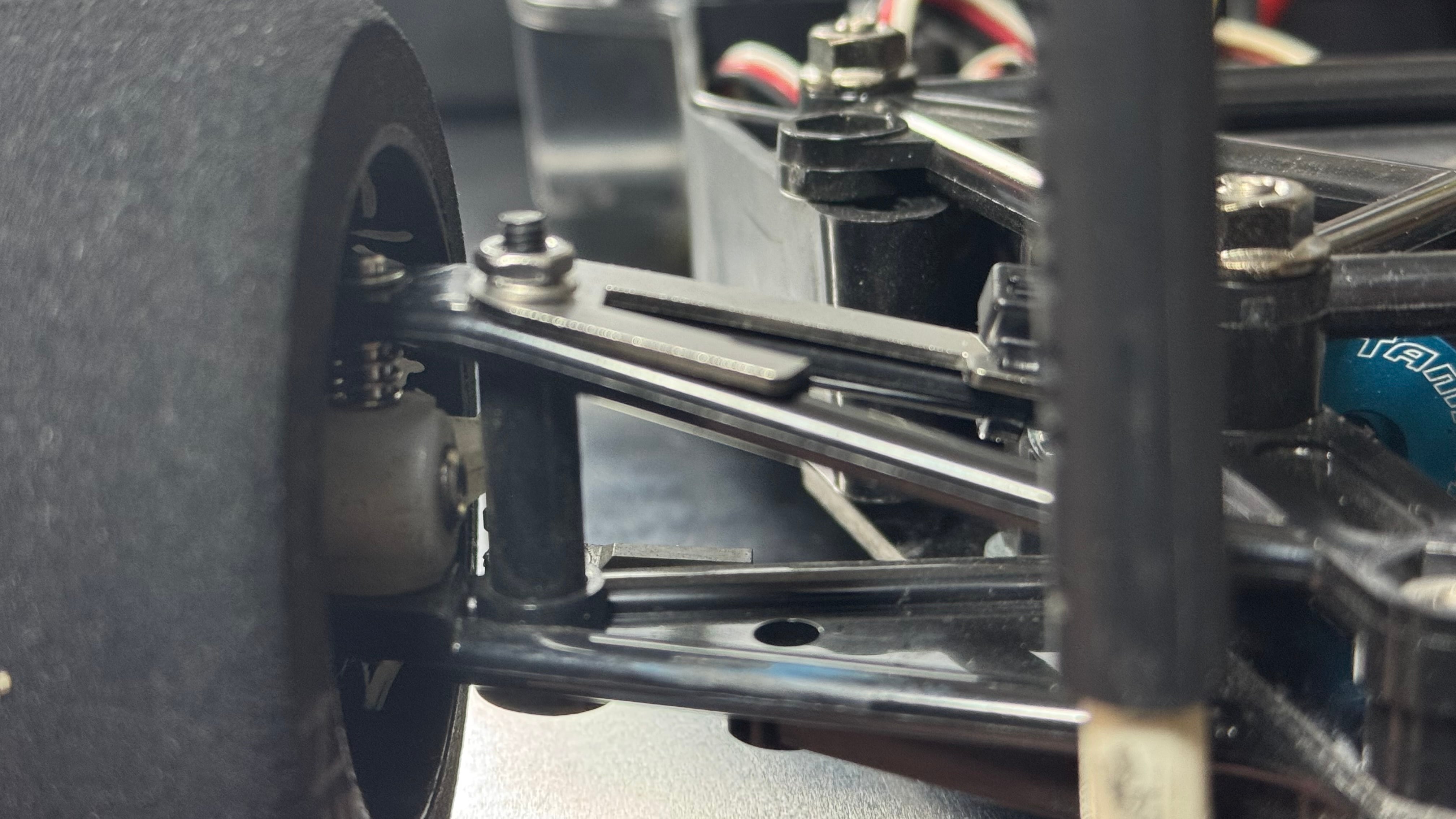

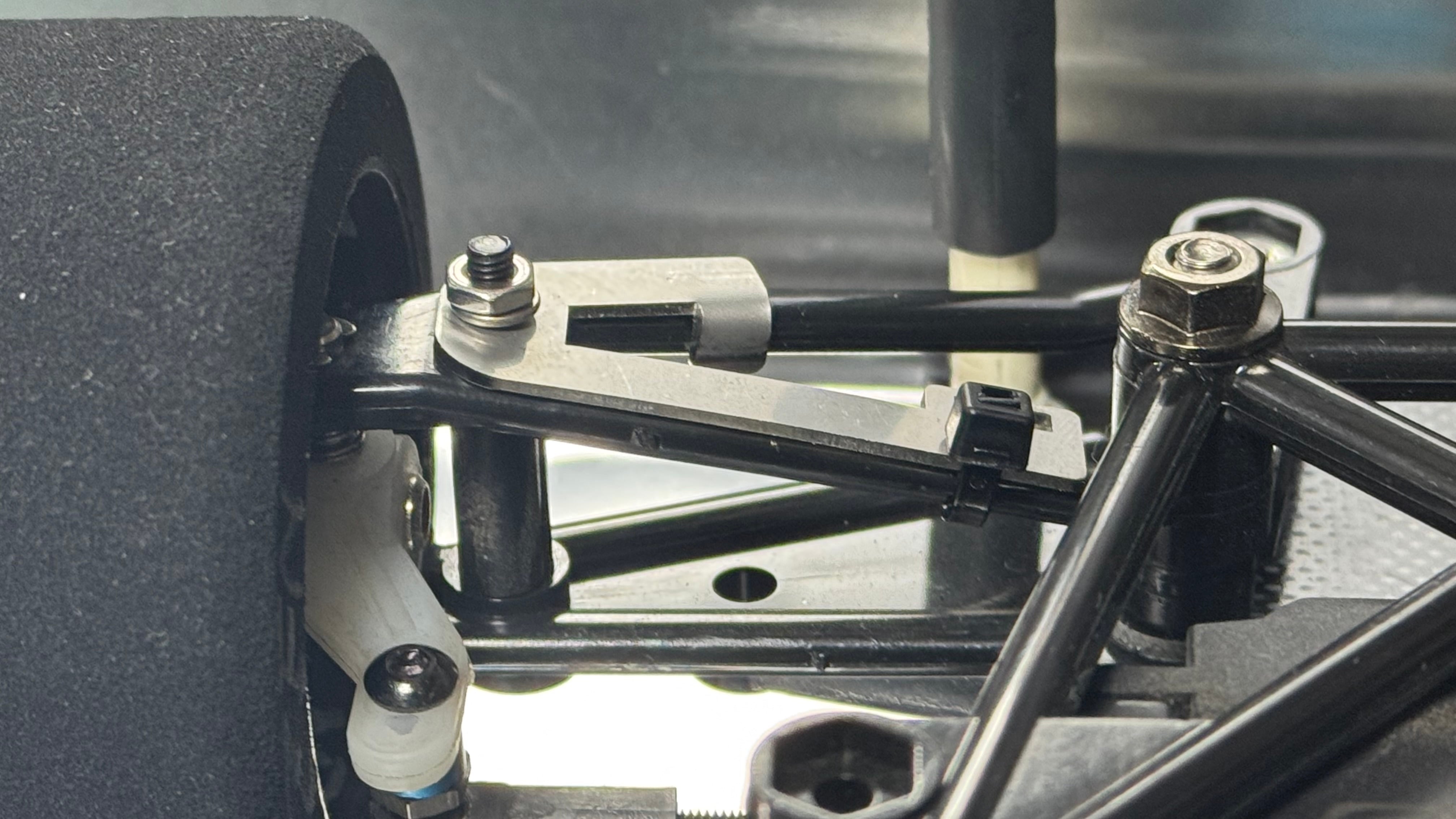

What This Product Does
This product requires additional modification to your existing front A-arms before installation.
However, once installed, it increases front A-arm rigidity.
That added rigidity can help make the load path through the front suspension easier to understand:
Tire → Upright → Upright Spring → A-Arm
By making the way the load moves through the front end more noticeable, the behavior of the car during cornering can become easier to read.
That also makes it easier to evaluate setup changes step by step.
And the more you understand the car…
the more you may find yourself falling even deeper into the world of Tamiya Group C cars.
I certainly did.
Even in the event of a harder impact, the amount of A-arm bending can be significantly reduced compared with the standard setup.
However, please note:
This product does not protect the vehicle from every possible impact or crash.
Depending on your setup, changes to the vehicle’s suspension or chassis settings may be required after installation.
Product Code
BKHFA LR1
For Tamiya Group C cars.
Includes both left and right sides.
Installation Difficulty
★★★★★
Level 5 / 5
This product requires modification of the existing front A-arms.
A through-hole must be drilled in each A-arm.
We recommend using a:
Φ3.0 mm drill bit
followed by careful reaming if necessary.
Do not make the hole unnecessarily large, as excessive clearance may create unwanted play.
Based on our installation experience, the maximum recommended hole diameter is approximately:
3.2 mm
Please note that some play may already be present at this diameter.
Confirmed Effects After Installation
* Helps reduce A-arm bending during light front-end impacts
* Makes front-end load behavior during cornering easier to understand
* Increases front A-arm rigidity
* Makes changes in T-bar setup easier to feel and evaluate
Important Information
* Additional machining of the existing front A-arms is required.
* Vehicle setup changes may be necessary after installation.
* Please use the included hardware when installing this product on the intended chassis.
* This product is designed to reduce damage and deformation, but it cannot prevent damage from all crashes or impacts.
For international shipping inquiries, please contact me directly through BASE messaging!
Specifications

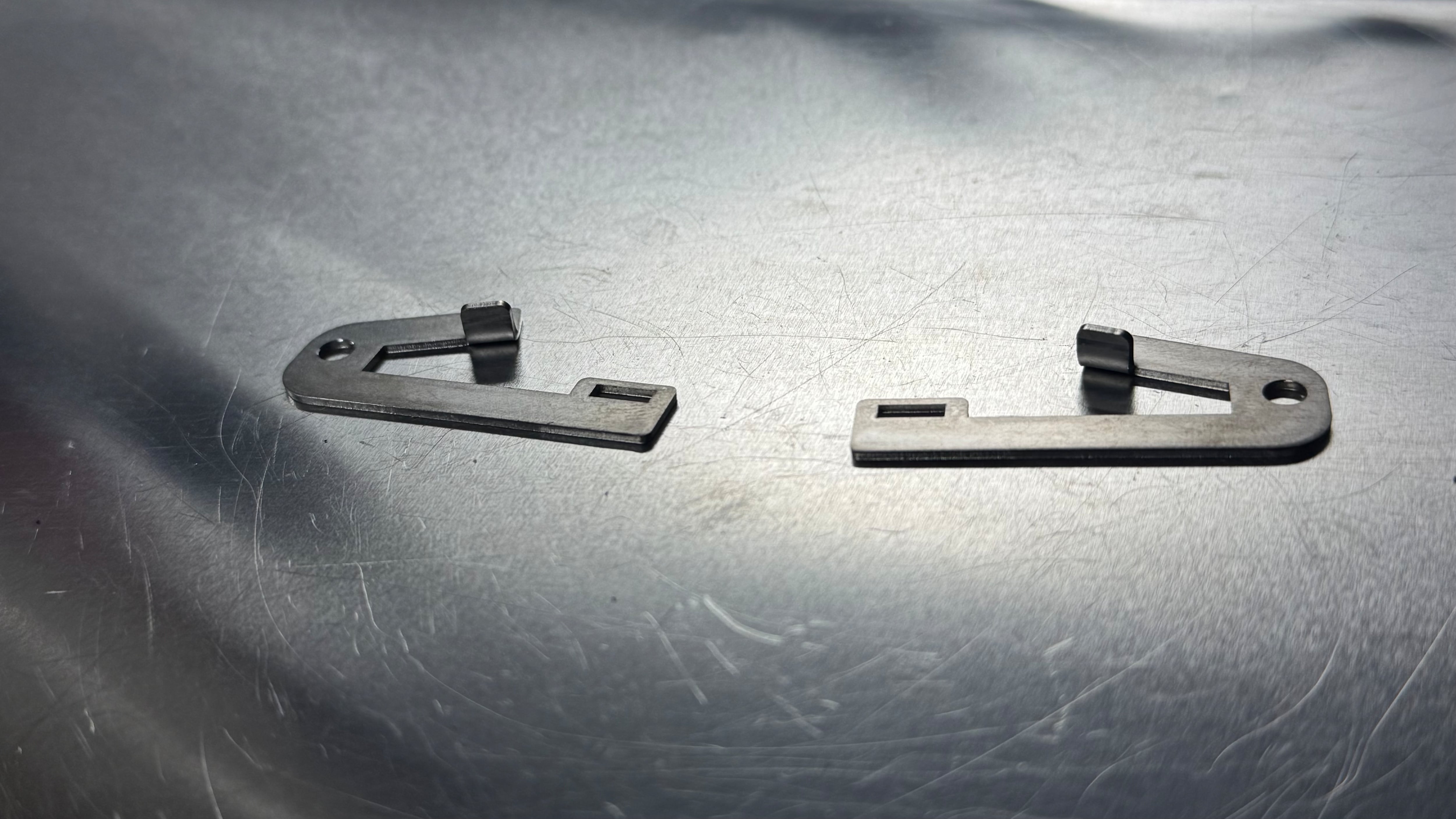

Product Name: Hard Front A-Arm Aid Set
Product Code: BKHFA LR1
Material: SUS304 Stainless Steel
Thickness: 1.0 mm
Dimensions: 40 mm × 20 mm
Compatible Chassis: Tamiya Group C Car chassis
Contents:
* 1 × Right Hard Front A-Arm Aid
* 1 × Left Hard Front A-Arm Aid
Included Hardware:
* 2 × M3 × 28 socket head bolts
* 2 × cable ties
* 2 × nuts
* 2 × spring washers
Shipping in Japan: Click Post ¥250
Product Notes
Because this is a sheet-metal component, minor scratches or processing marks may be present on the product surface as a result of manufacturing.
These marks do not affect product performance or functionality.
After installation, changes to the vehicle setup may be required.
Please use the included screws and hardware for installation on the intended chassis.
Machining Note
Your existing front A-arms must be drilled before installation.
We recommend using a Φ3.0 mm drill bit.
A hole that is too large may cause unwanted looseness or play.
Based on our installation experience, approximately 3.2 mm is the maximum practical diameter, although some play may occur at this size.
Please perform all drilling and reaming carefully.
Improper machining may affect fit, alignment, and vehicle performance.
-
