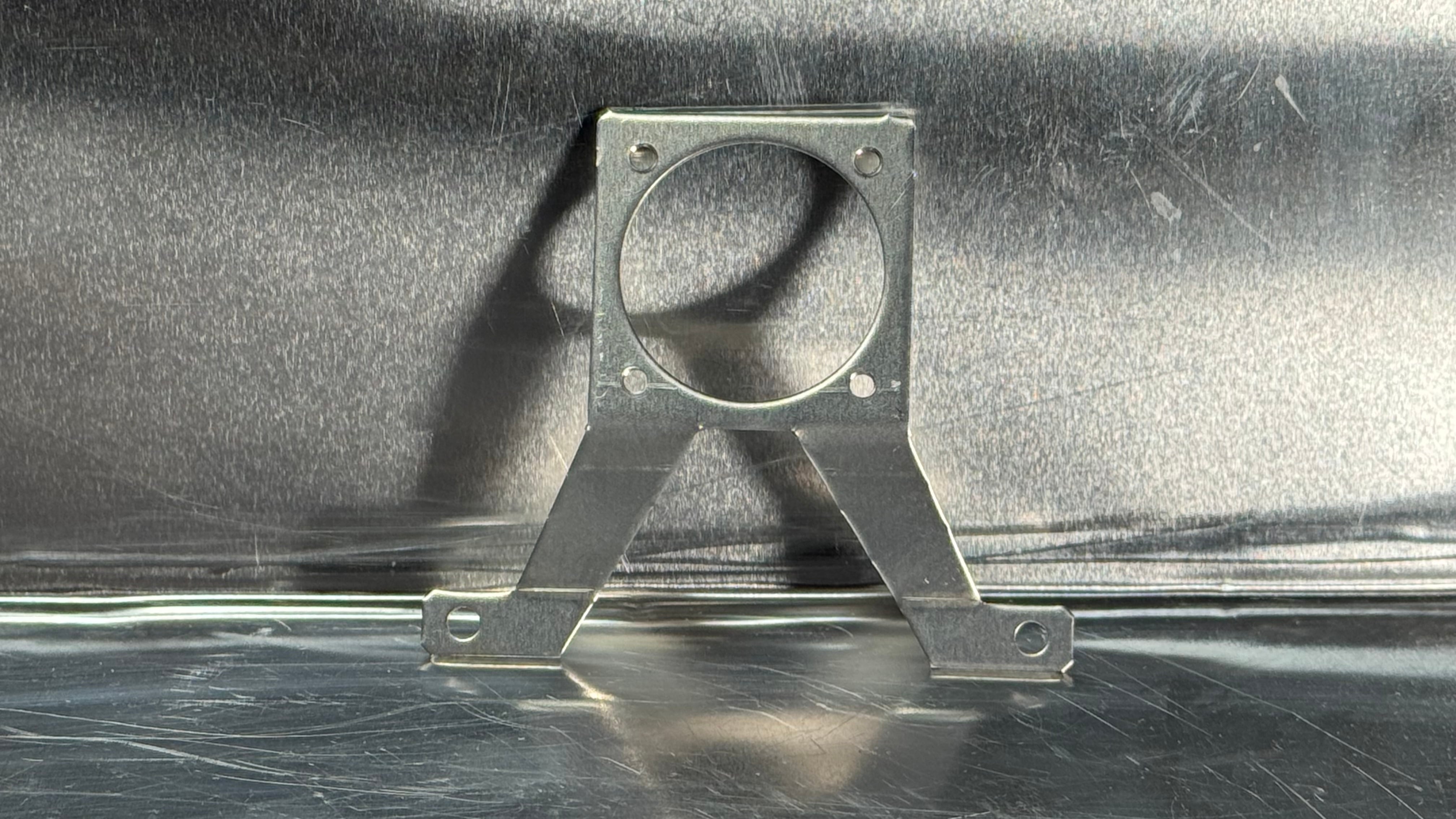

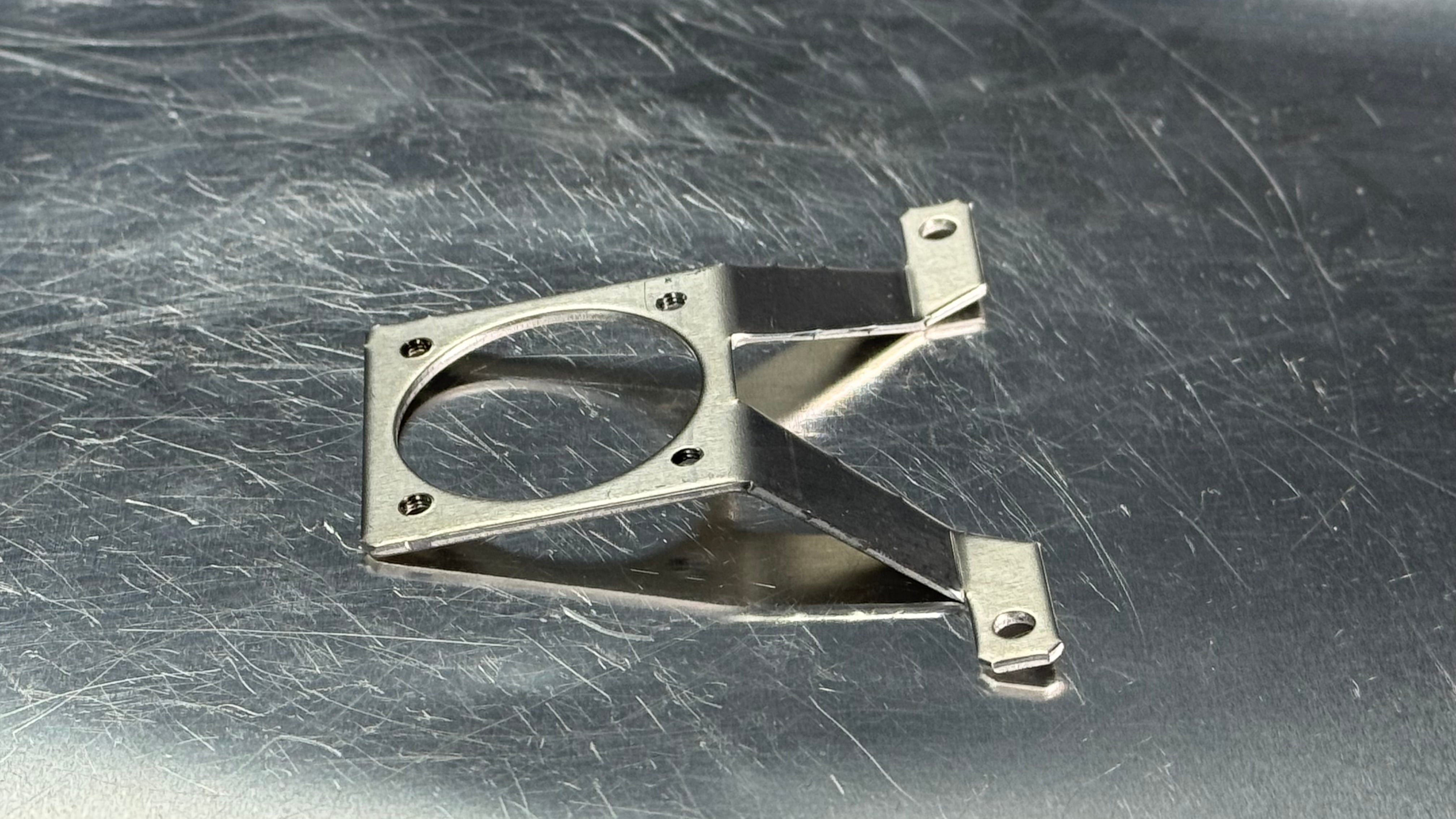

「ファンブゥCC」/ タミヤ Cカー用 ファンブラケット
¥1,430($9.23)
International shipping available
この商品は3点までのご注文とさせていただきます。
2007年より再販を続けている、タミヤCカーシリーズ
単純と思われるシャーシ構造の中に、ロマンがたくさん詰まっているCカー。
その魅力にどっぷりとつかっている人のうちの一人でも私はあります。
販売当時とシャーシ構造が同じだからこそ、
奥が深く味わい深い１台ですよね。
「そんなCカーのモーターを、しっかりと冷やす!」
毎年毎年最高気温を更新する昨今です。
操縦者もRCも熱対策はしっかりとしたいですよね。
そんな時、この子「ファンブゥCC」がぴったりです！
（BKCC-001）
：開発コンセプト：
パワーソースが変化し、ブラシレスモーターが多く採用されて
ブラシドモーターと比較して走行時のモーター温度は低くなっていると思いますいが、
上昇し続ける外気温。
それに比例する路面温度の上昇。
人もRCも大変な夏場を乗り切るには、ファンブラケットを作らねば！
が、開発コンセプトの一つです。

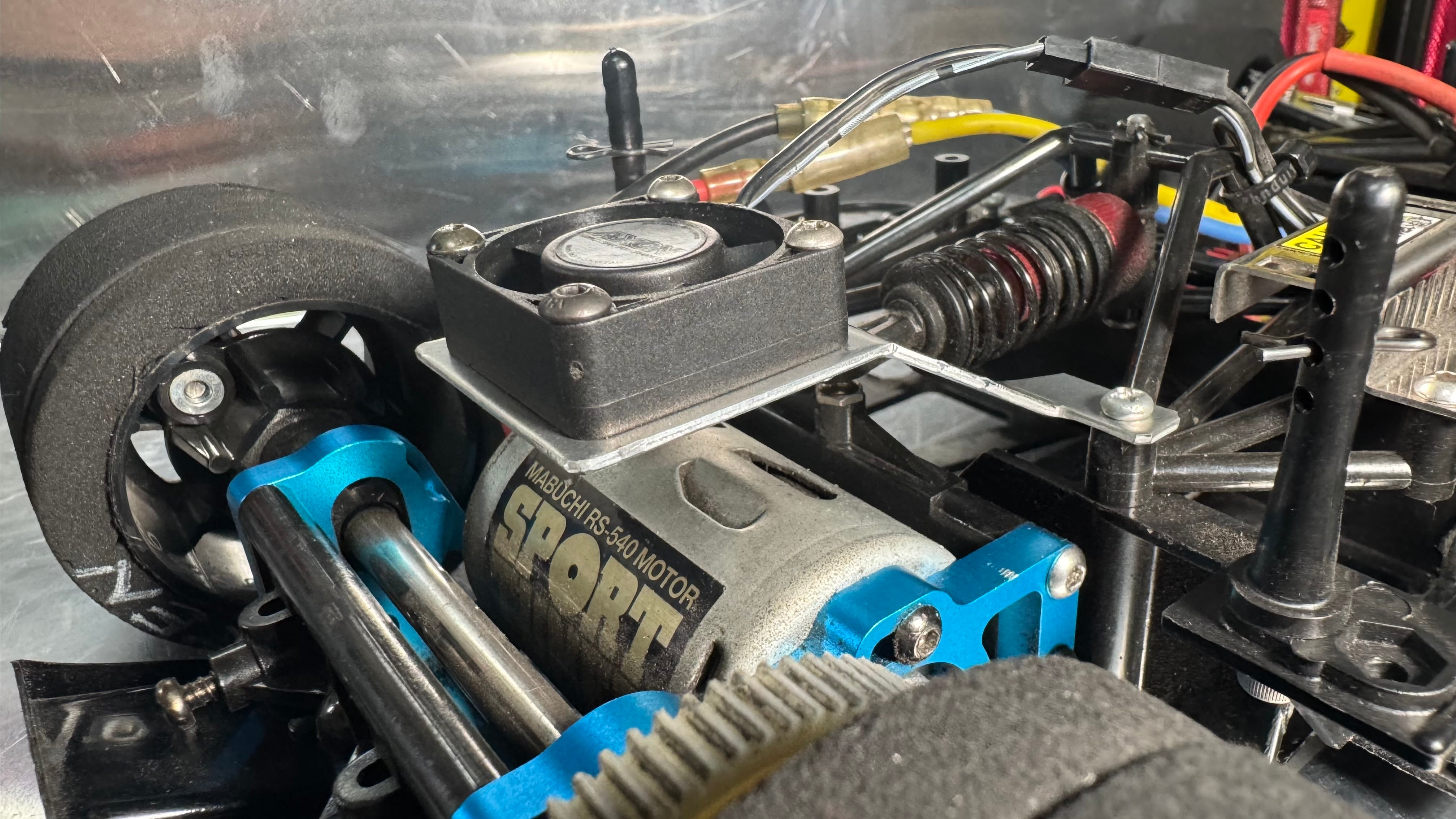

ファンブラケットを固定するのに、ギアケースに共じめせず
リアダンパー固定アーム（シャーシ側）に共じめ固定の設計にしております。
既存タッピングビス「MC4 M３×18」を使用して固定をして下さい。
冷却ファンは別途ご用意ください。
ファンの固定は、M3をご利用ください。
ユーザー様からのお情報を追記です!!

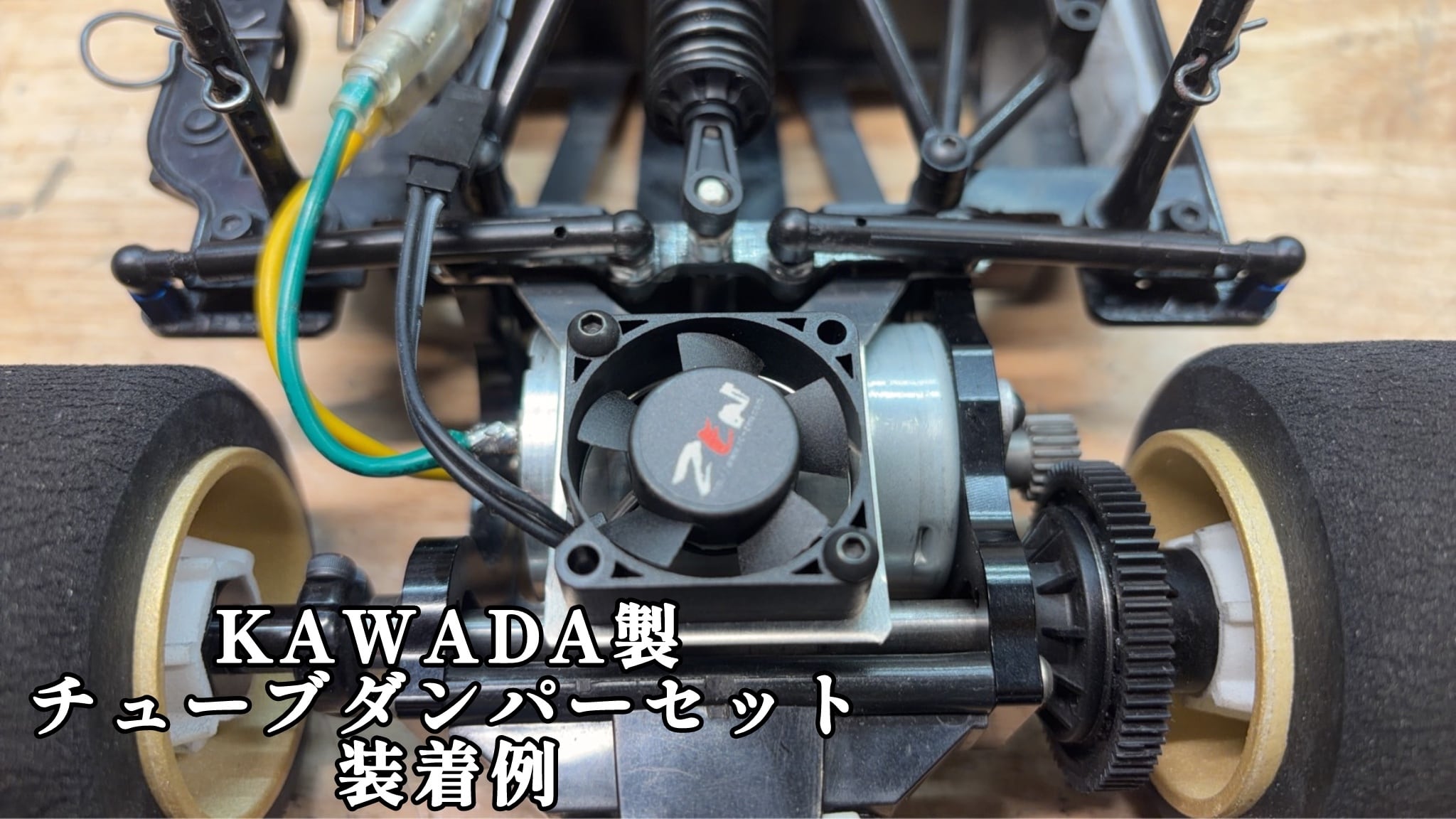

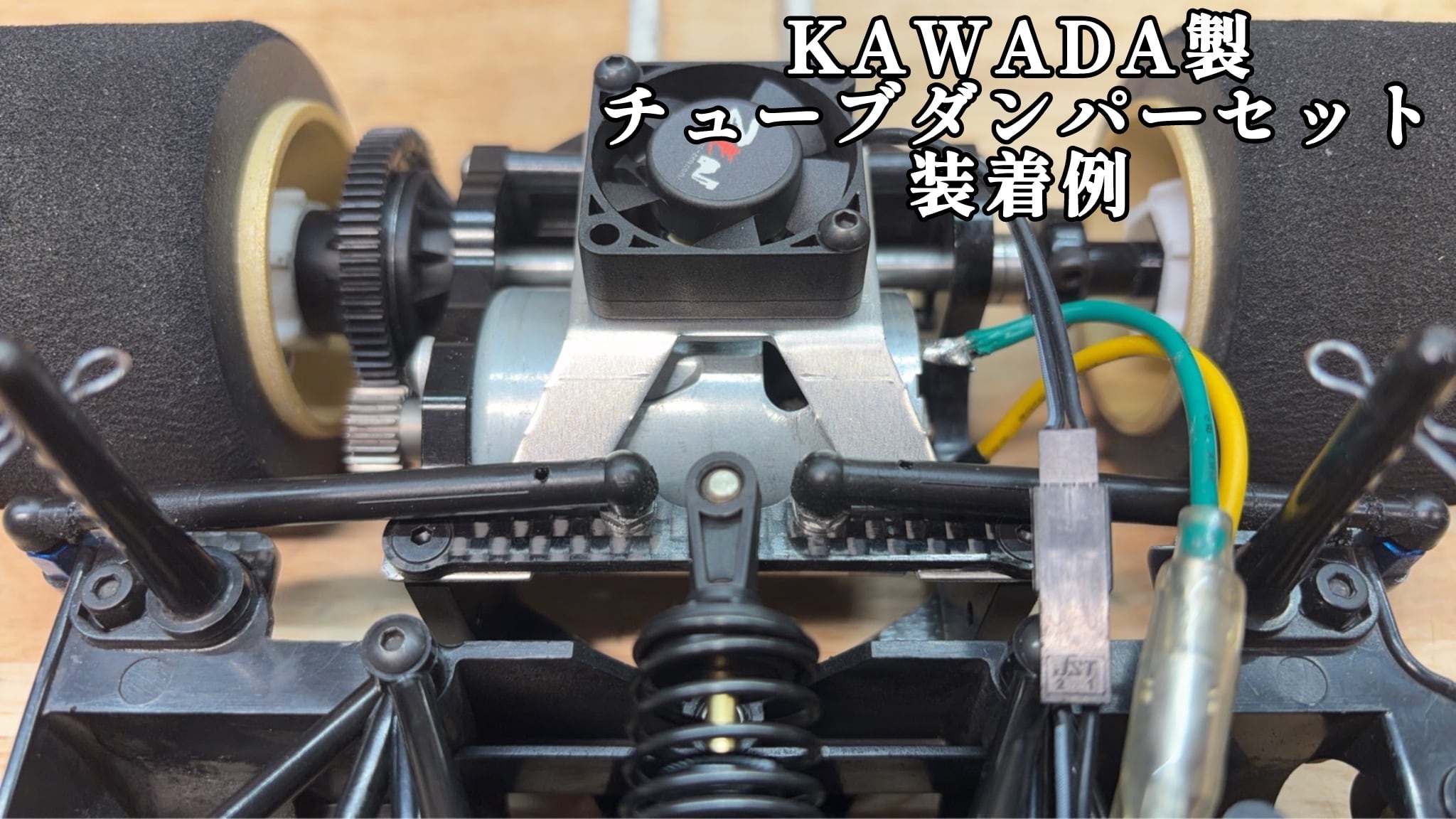

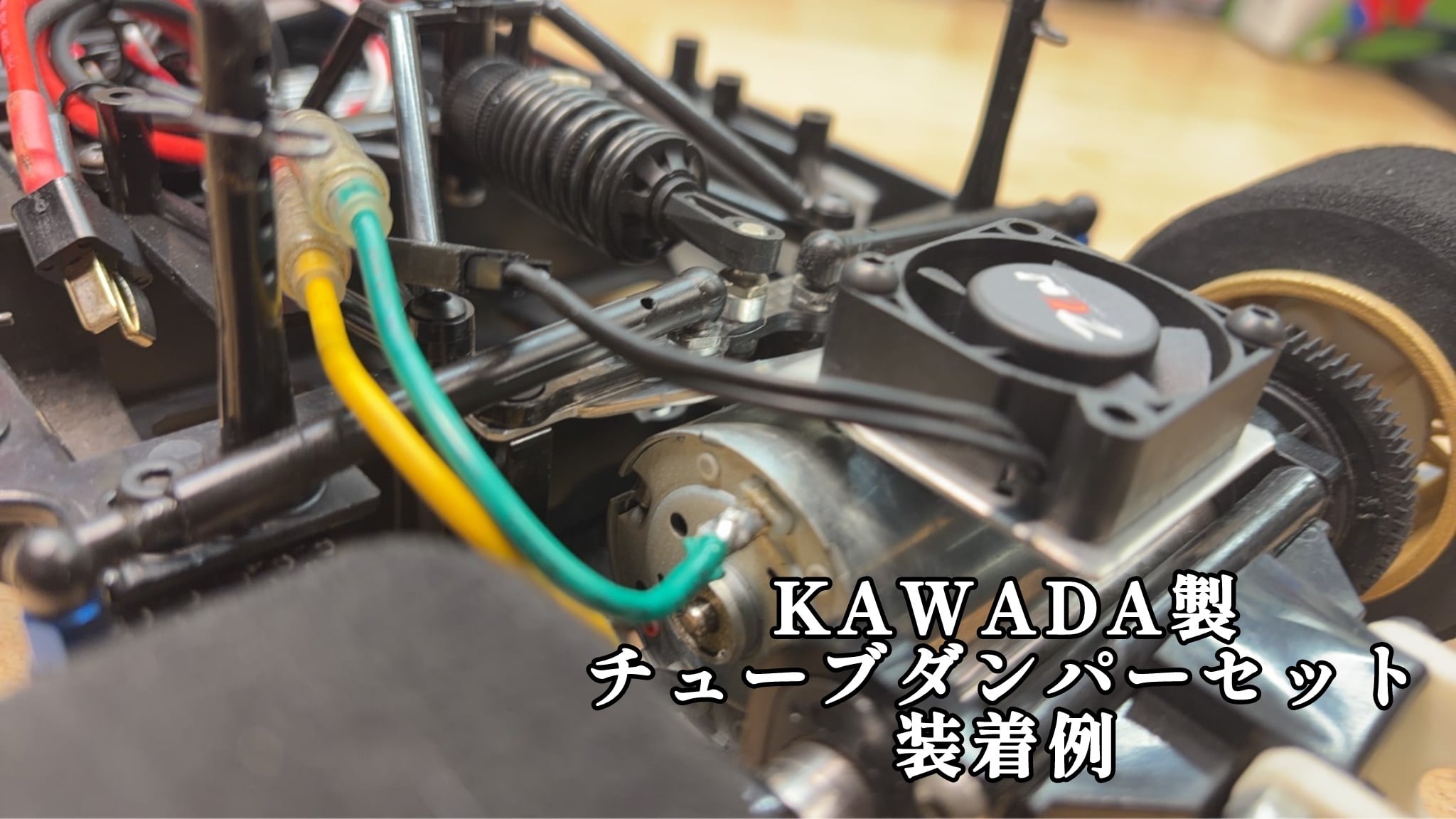

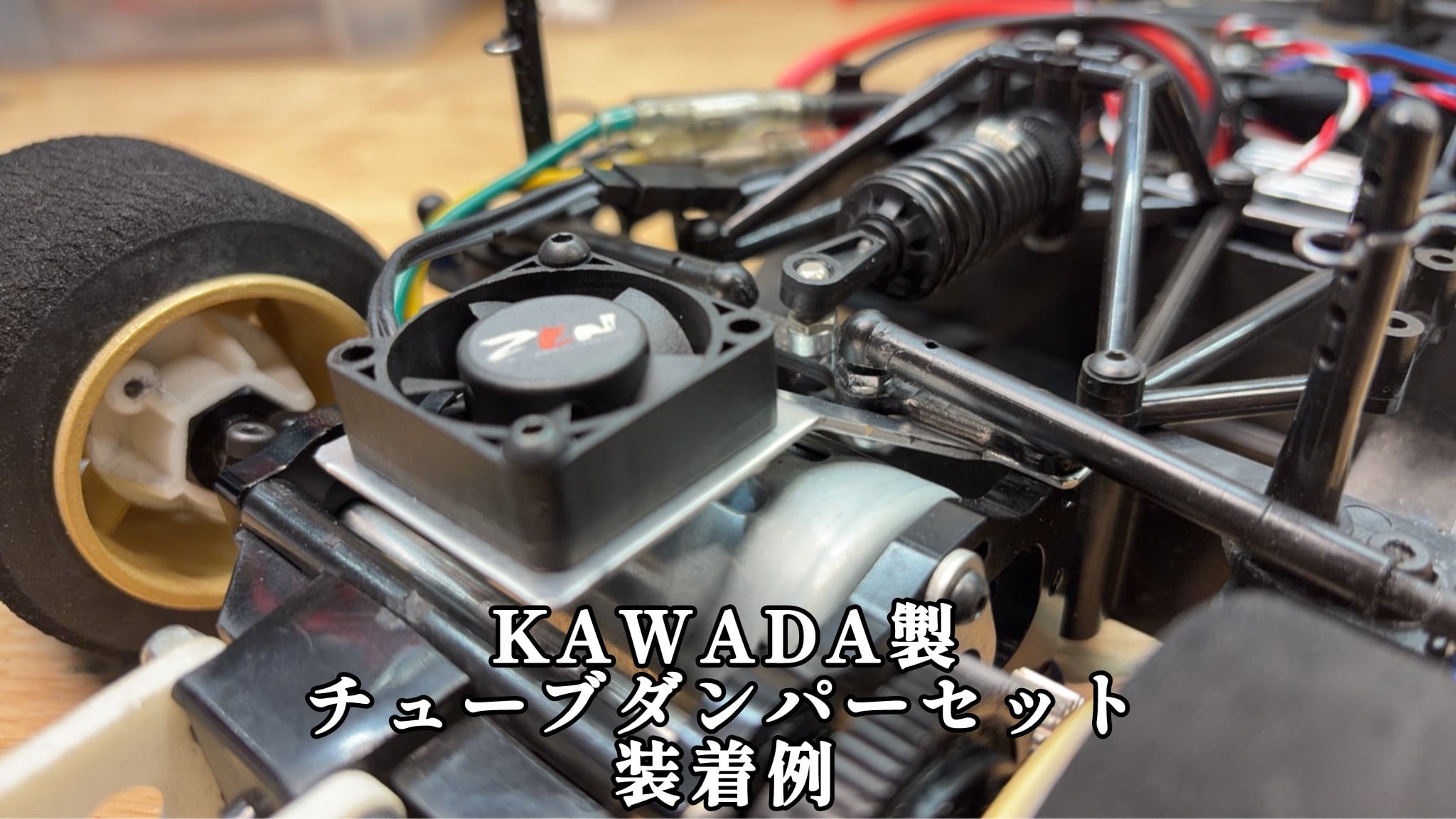

KAWADA製
モーターマウント&チューブダンパー装着車に、
なんと！
シンデレラフィットで御座いましたのでご報告させて頂きます。

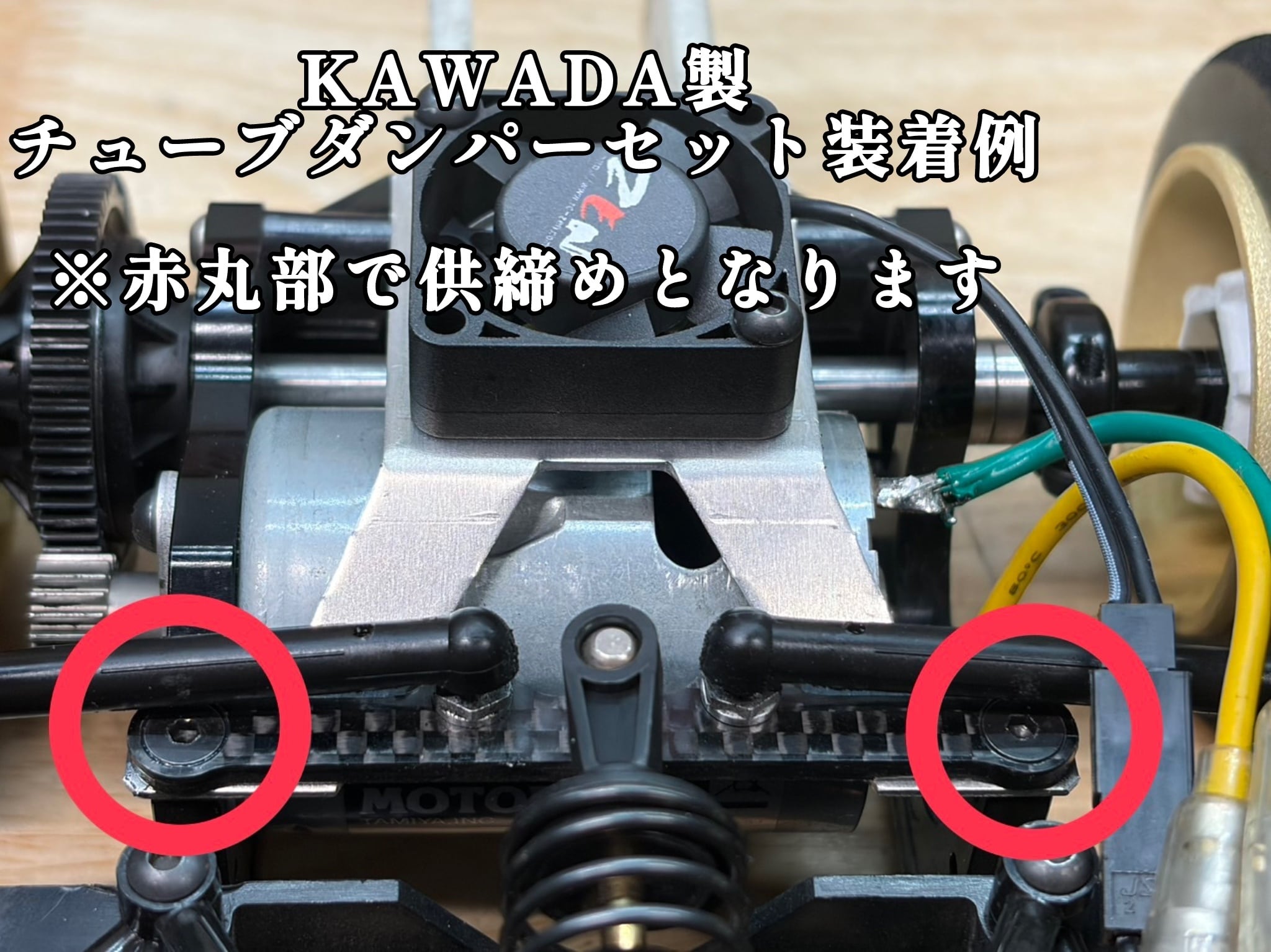

取り付けはモーターマウントとダンパーステーの間にファンステーを挟んで取り付けるとシャーシロール時にも干渉無く取り付ける事が出来ます。
と、タレコミを頂きました！
カワダユーザー様！この機会に是非とも！
取付難易度は★★☆☆☆レベル２です。
※既存部品との穴位置を確認して固定してください。
※ For international shipping inquiries, please contact me directly through BASE messaging!
材 質：アルミ
板 厚：1.5ｔ
個 数：１ケ
対 応：タミヤCカーシャーシ TAMIYA Group C Car
付属品：本体
発 送：クリックポスト250円
仕 様：板金部品には製品面に加工上傷が入ることがあります。製品上問題はありません。
仕 様：ファンの固定ネジは優しく締めこんで下さい。
仕 様：WBでファンの位置は変更します。
注 意：素材はアルミです過度に力を加えると変形します。
注 意：素材はアルミです過度に締め付けるとタップが壊れます。
注 意：本体は極力水平を意識して取り付けしてください。
“FANBoo CC” / Cooling Fan Bracket for Tamiya Group C Cars
The Tamiya Group C series has continued to be reissued since 2007.
At first glance, the chassis structure may look simple.
But inside that simplicity is a huge amount of character, history, and pure RC romance.
I am also one of the many people who have completely fallen for the charm of these Group C cars.
And because the basic chassis structure remains essentially the same as when these cars were originally released, they still have incredible depth and character even today.
That is part of what makes them so special.
So we thought:
“Let’s cool that Group C motor properly!”
These days, it feels like the highest summer temperatures are being broken year after year.
Both the driver and the RC car need proper protection from the heat.
And when things get hot, this little guy is ready to help:
FANBoo CC
BKCC-001
Development Concept
Modern RC power systems have changed dramatically.
Brushless motors are now widely used, and compared with brushed motors, operating temperatures may often be lower.
But there is another problem:
The outside temperature keeps rising.
And as the air temperature rises, so does the track surface temperature.
Summer is becoming tougher for both people and RC cars.
So one of the ideas behind this product was very simple:
“If we want to survive those hot summer RC sessions, we need a proper fan bracket!”
That became one of the development concepts behind FANBoo CC.

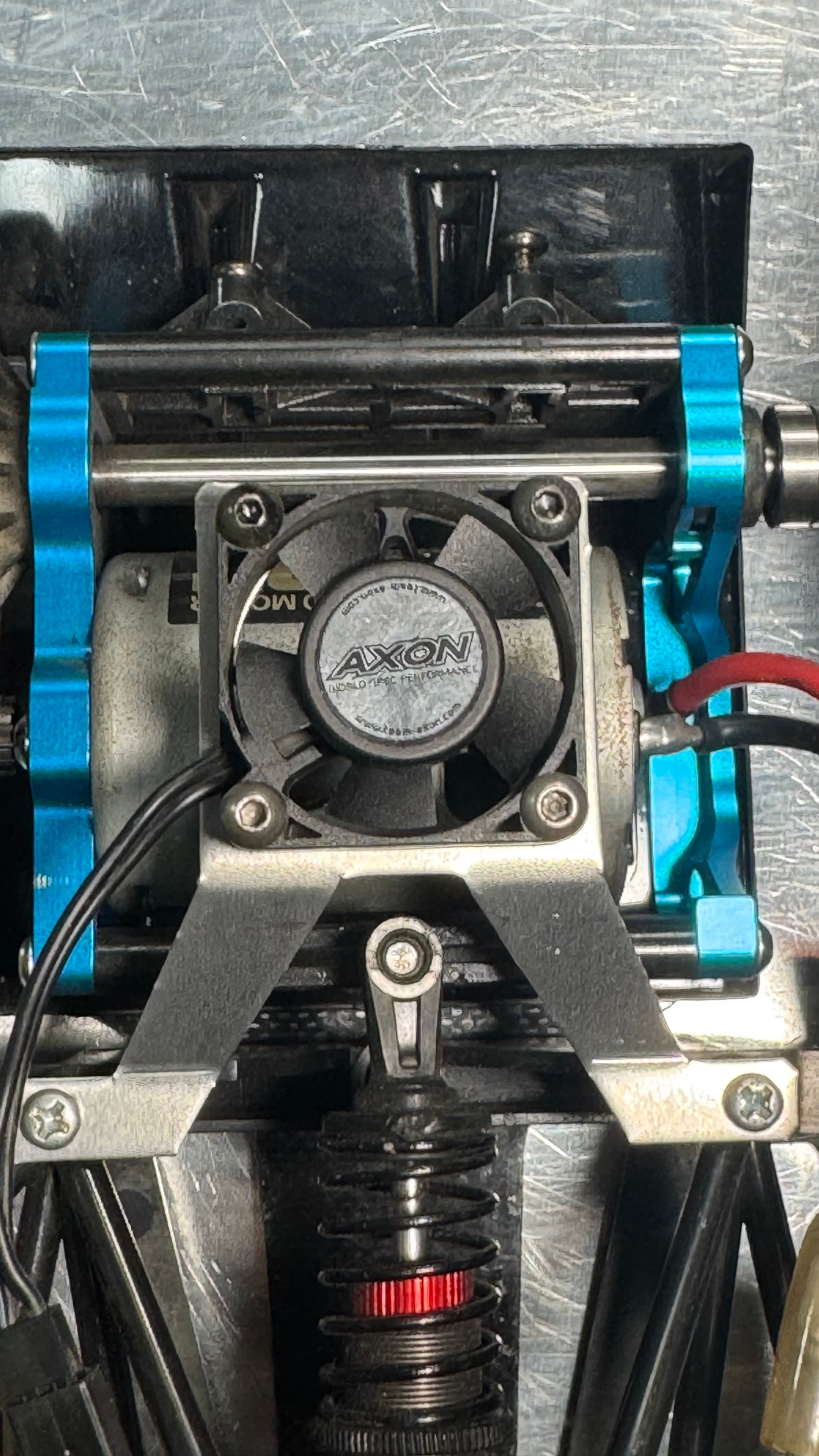

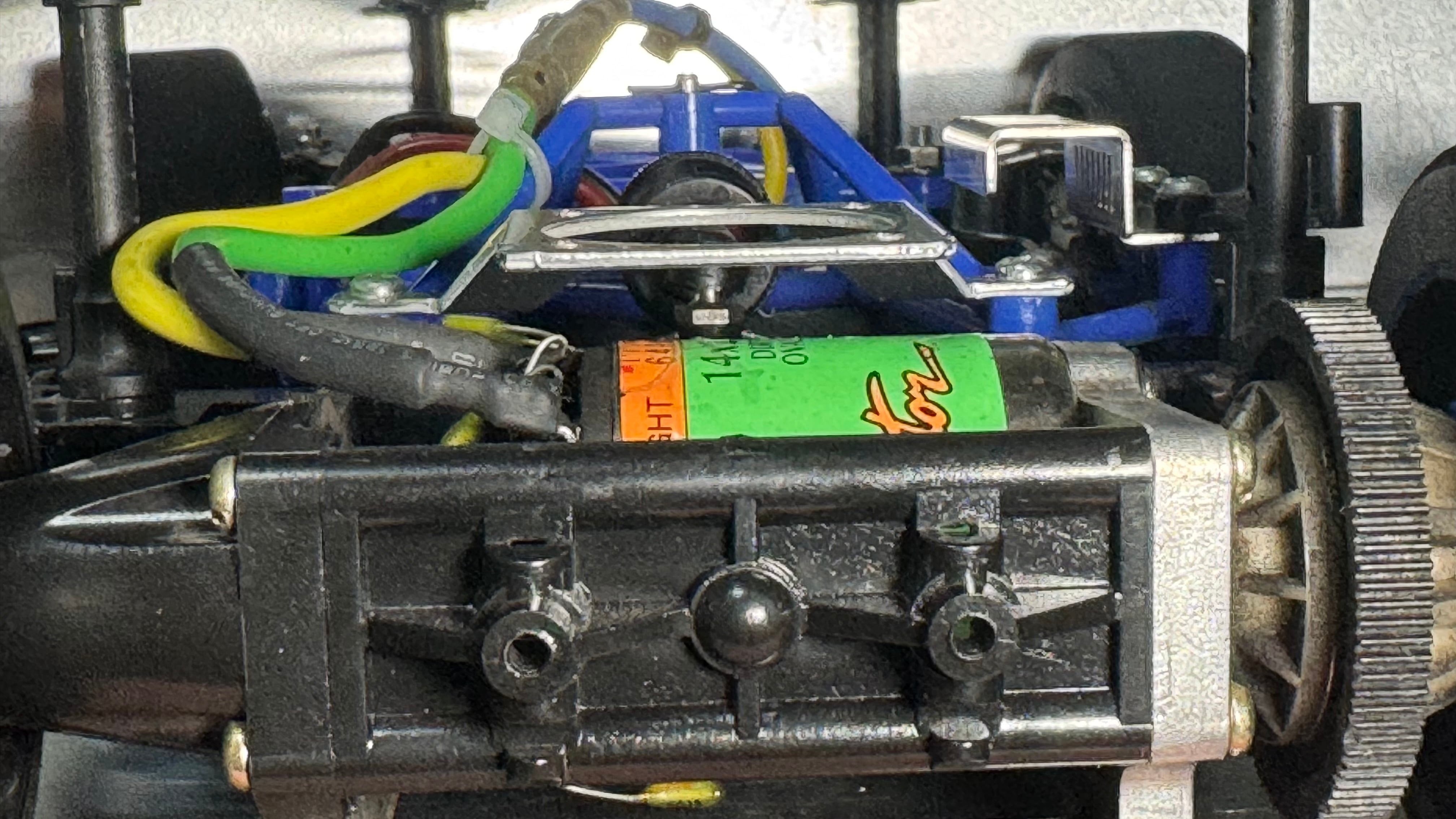

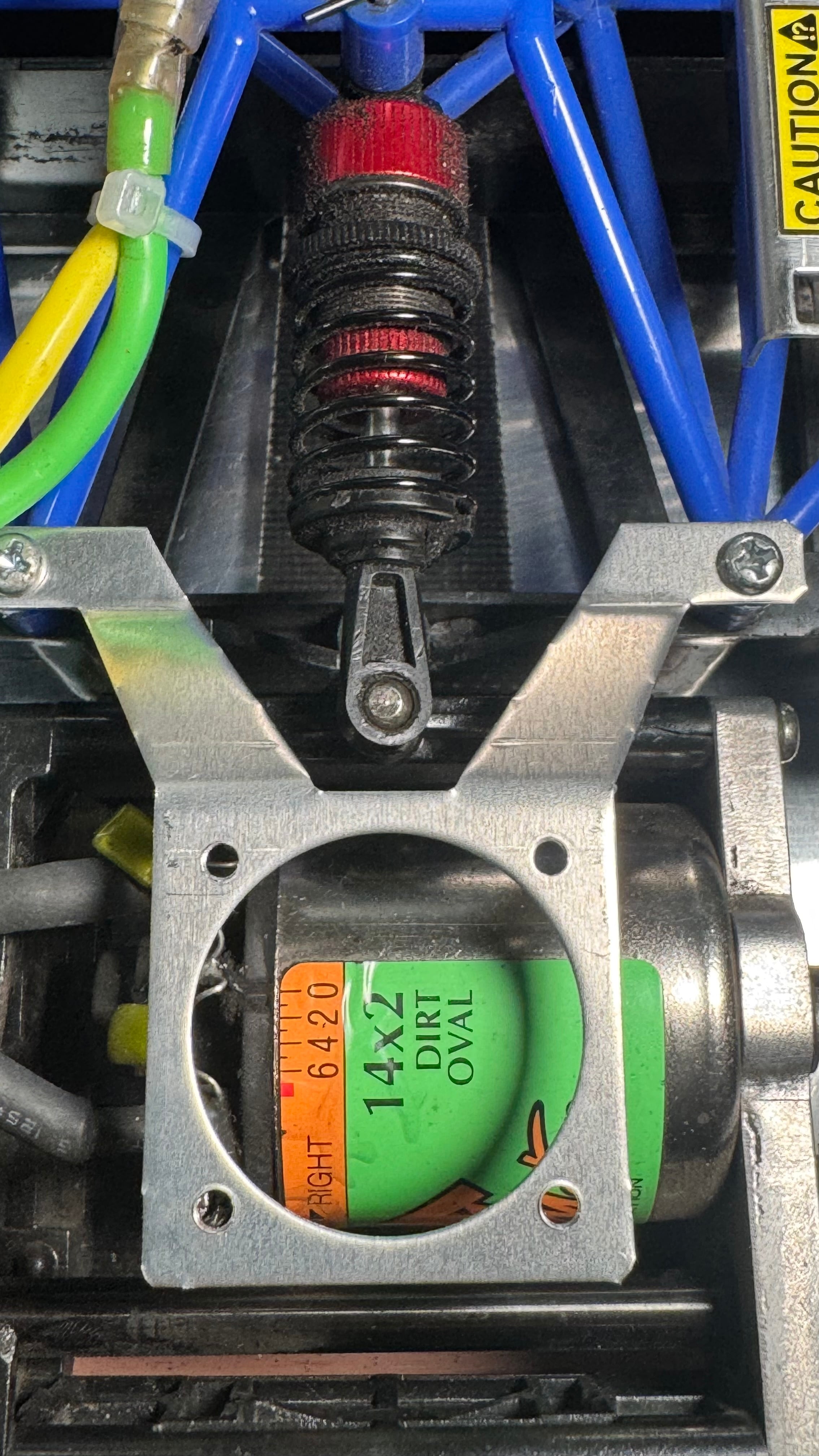

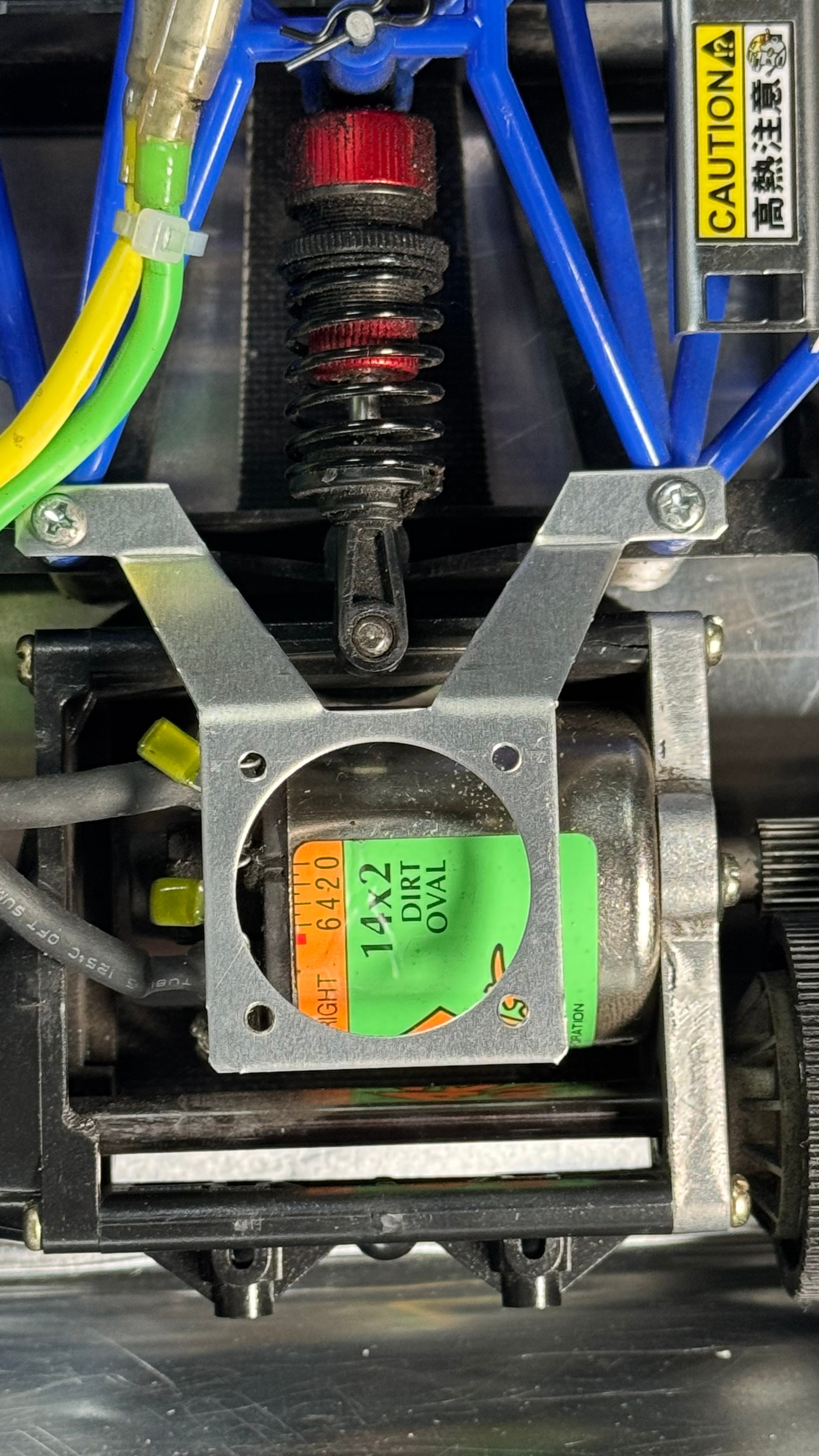

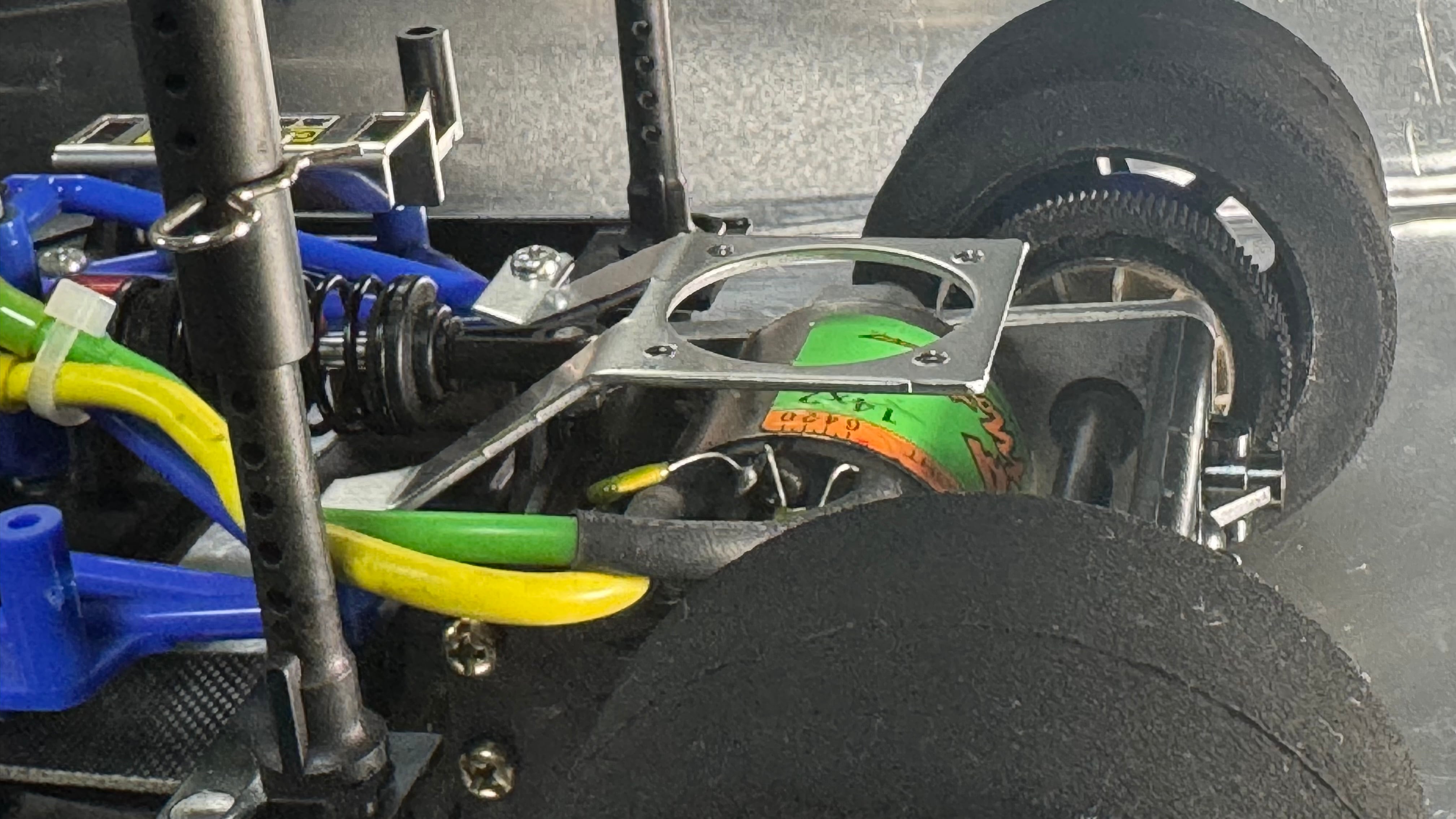

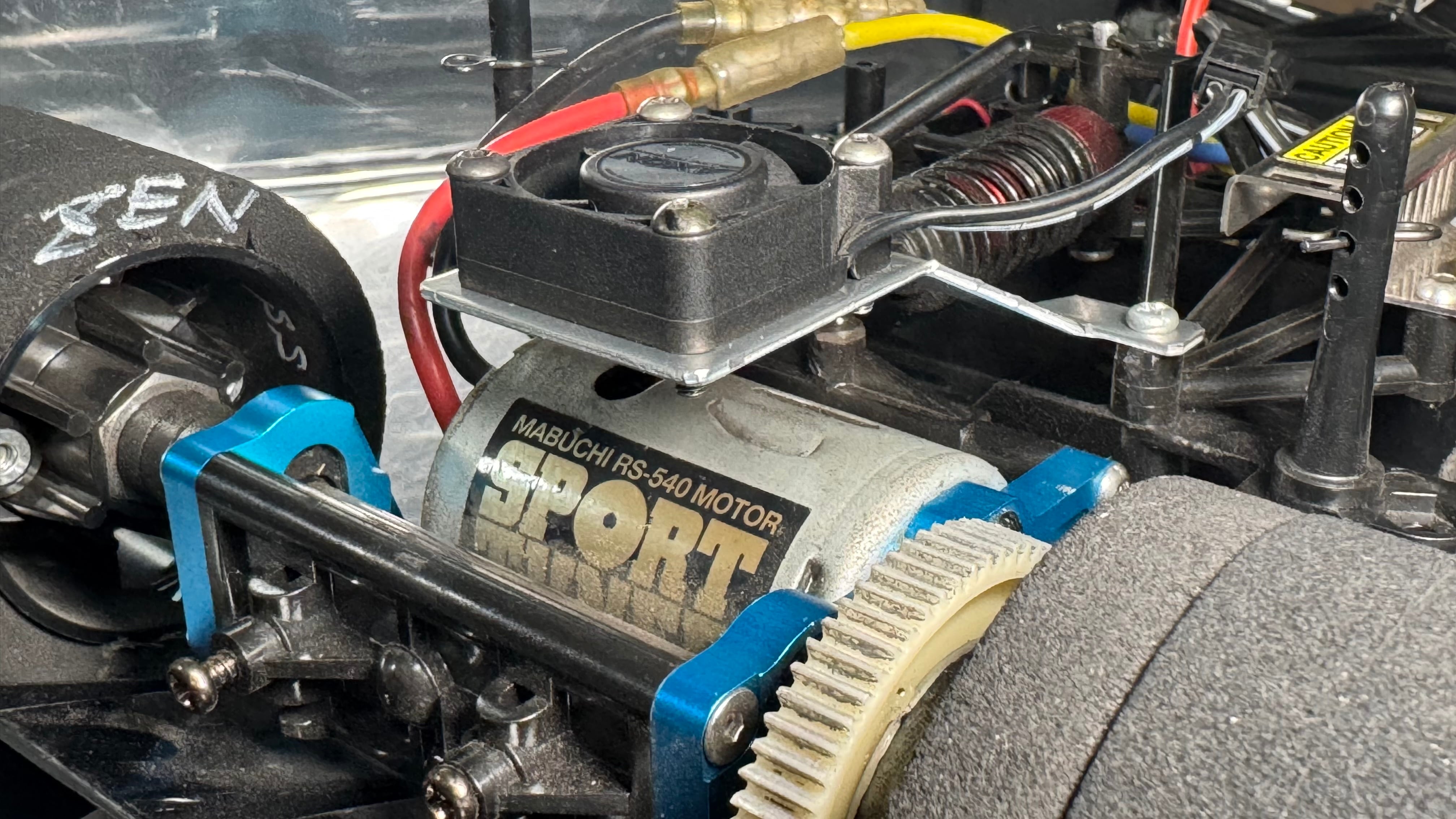

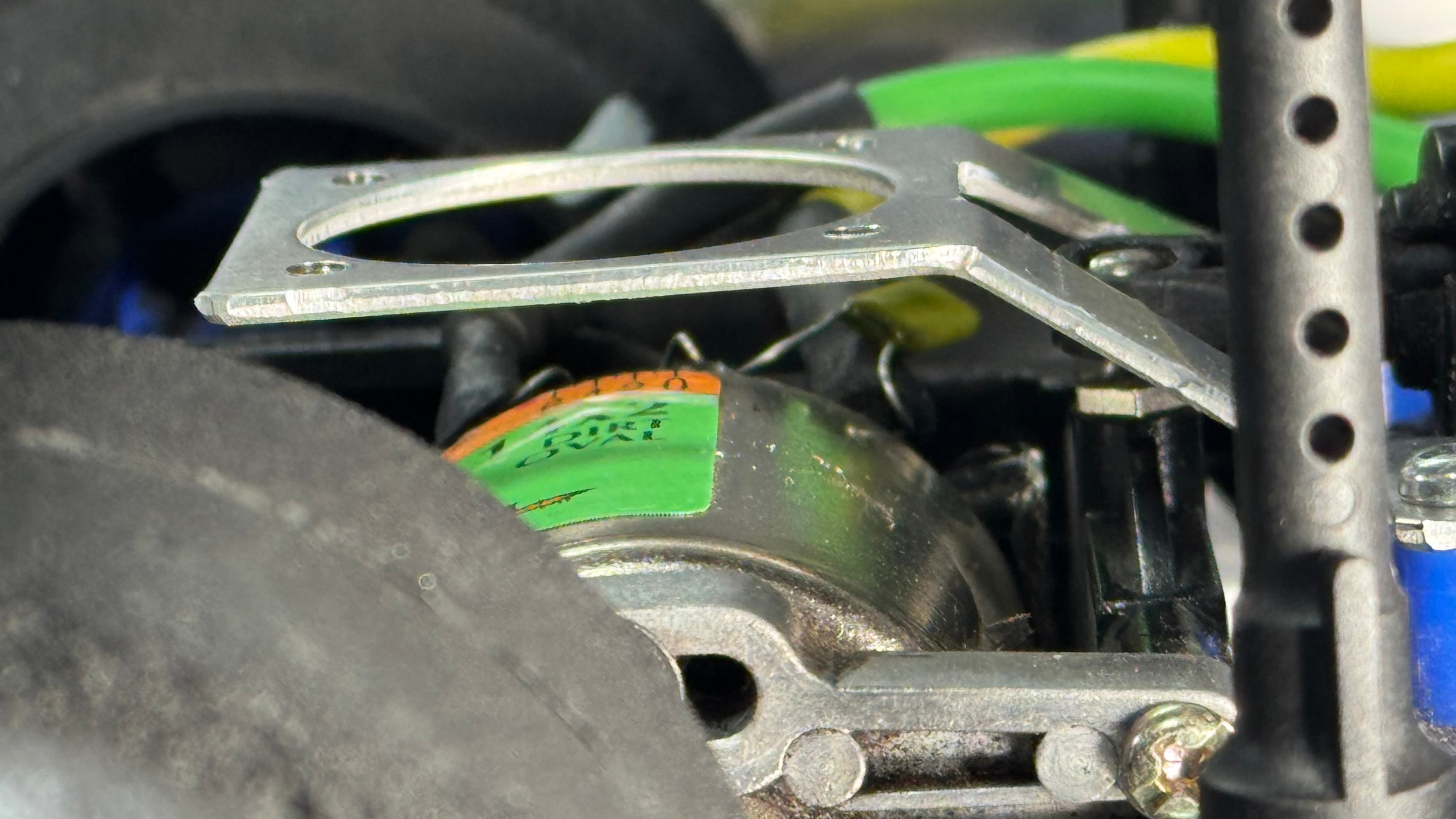

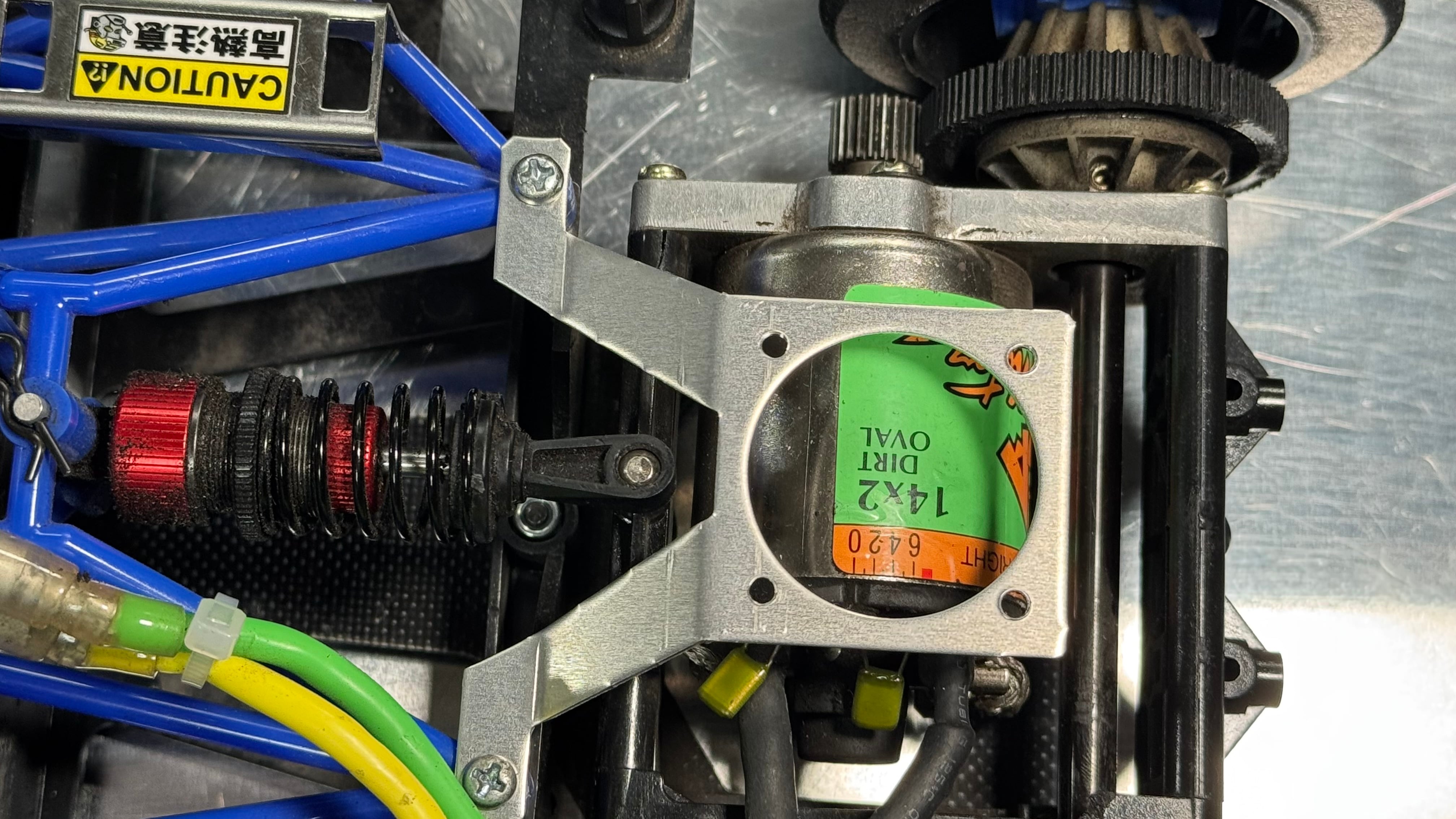

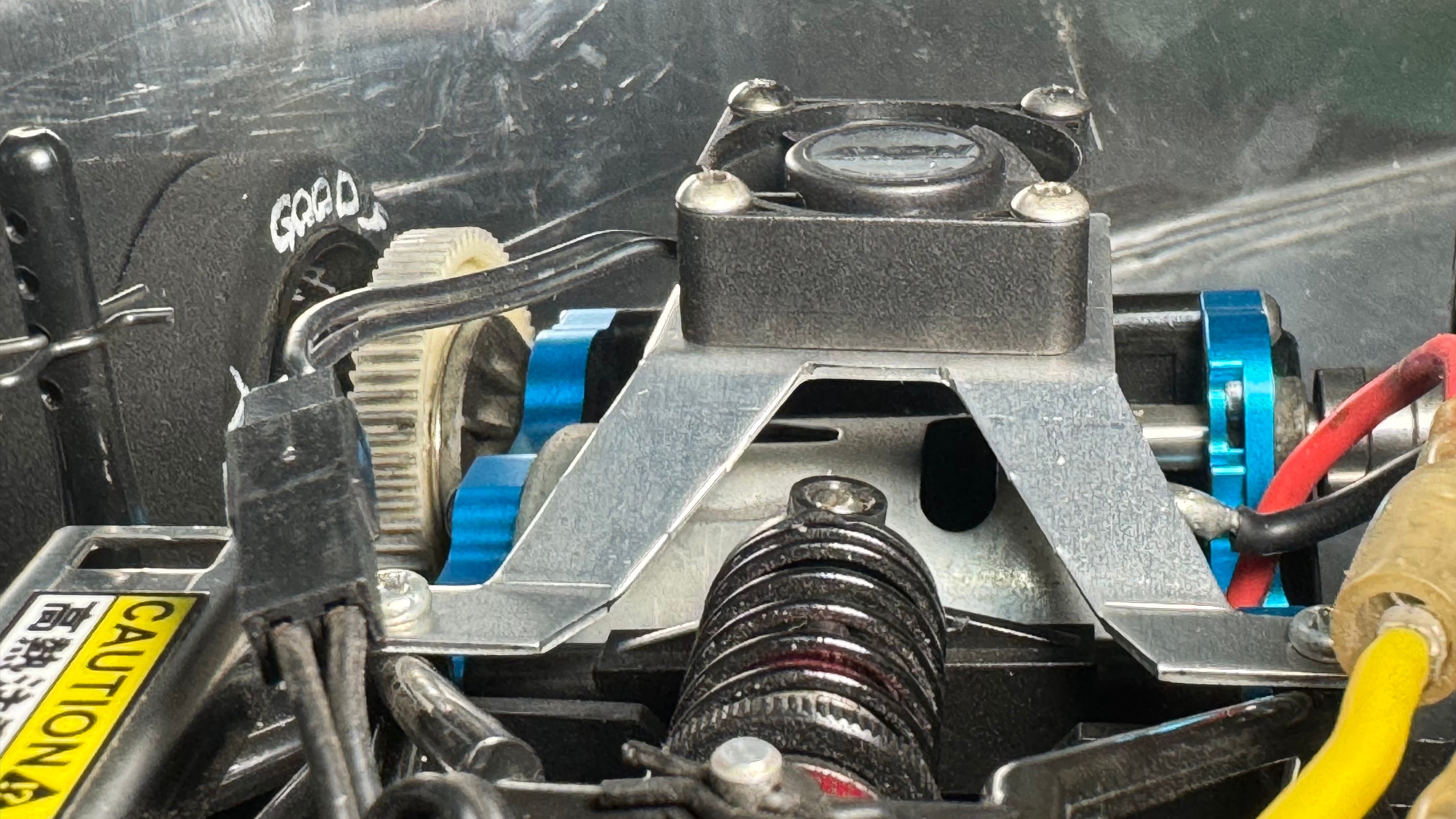

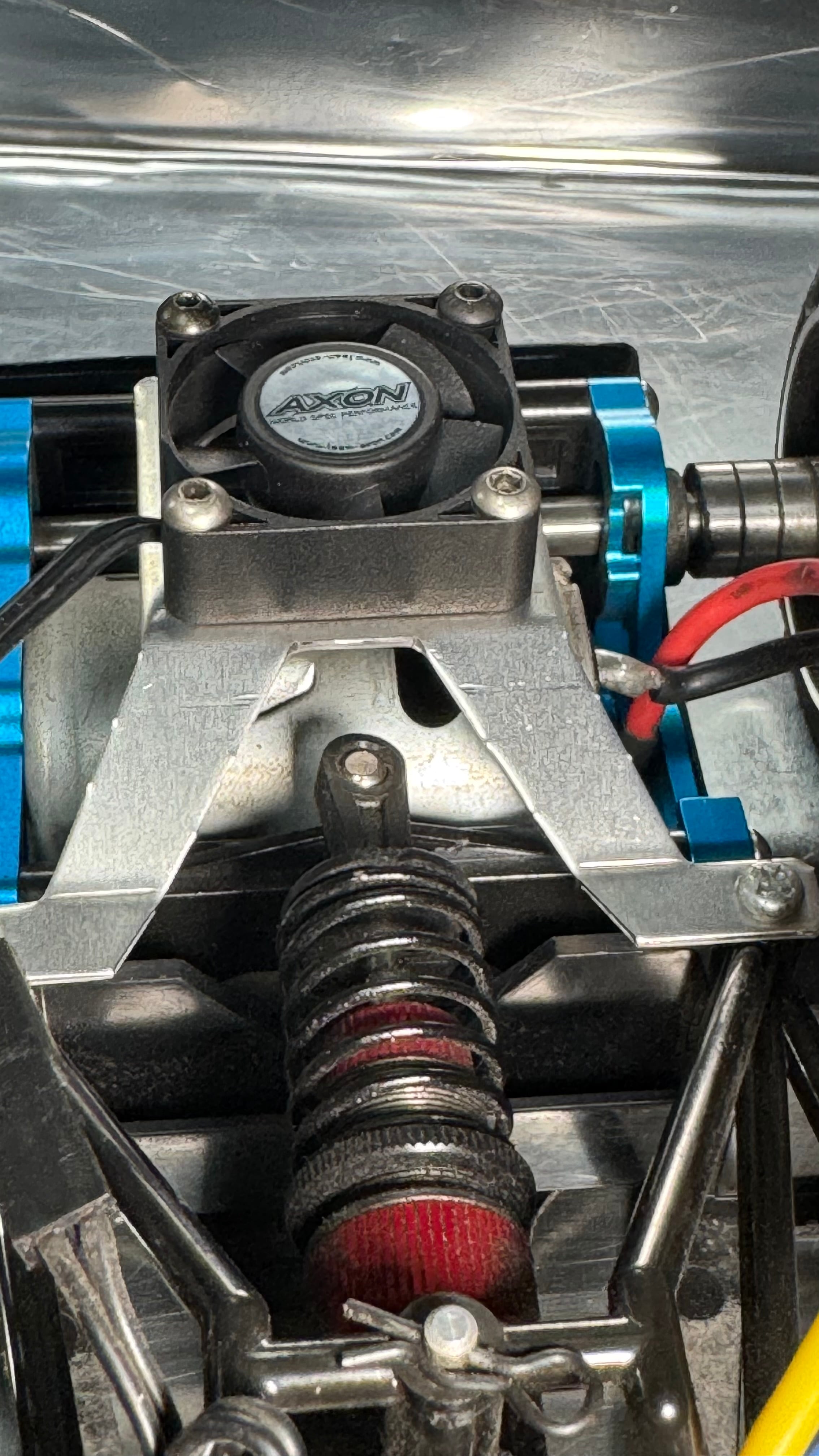

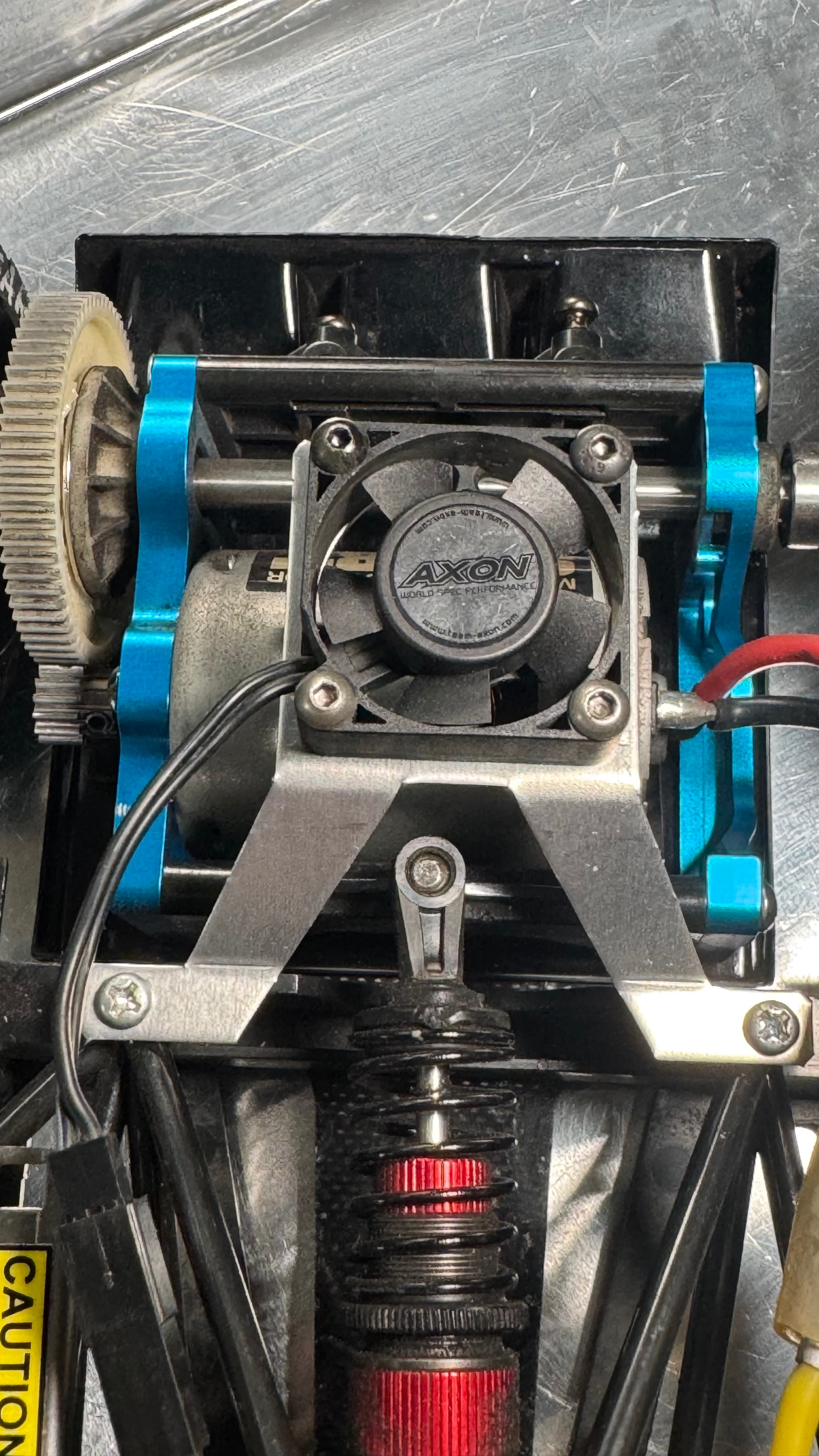

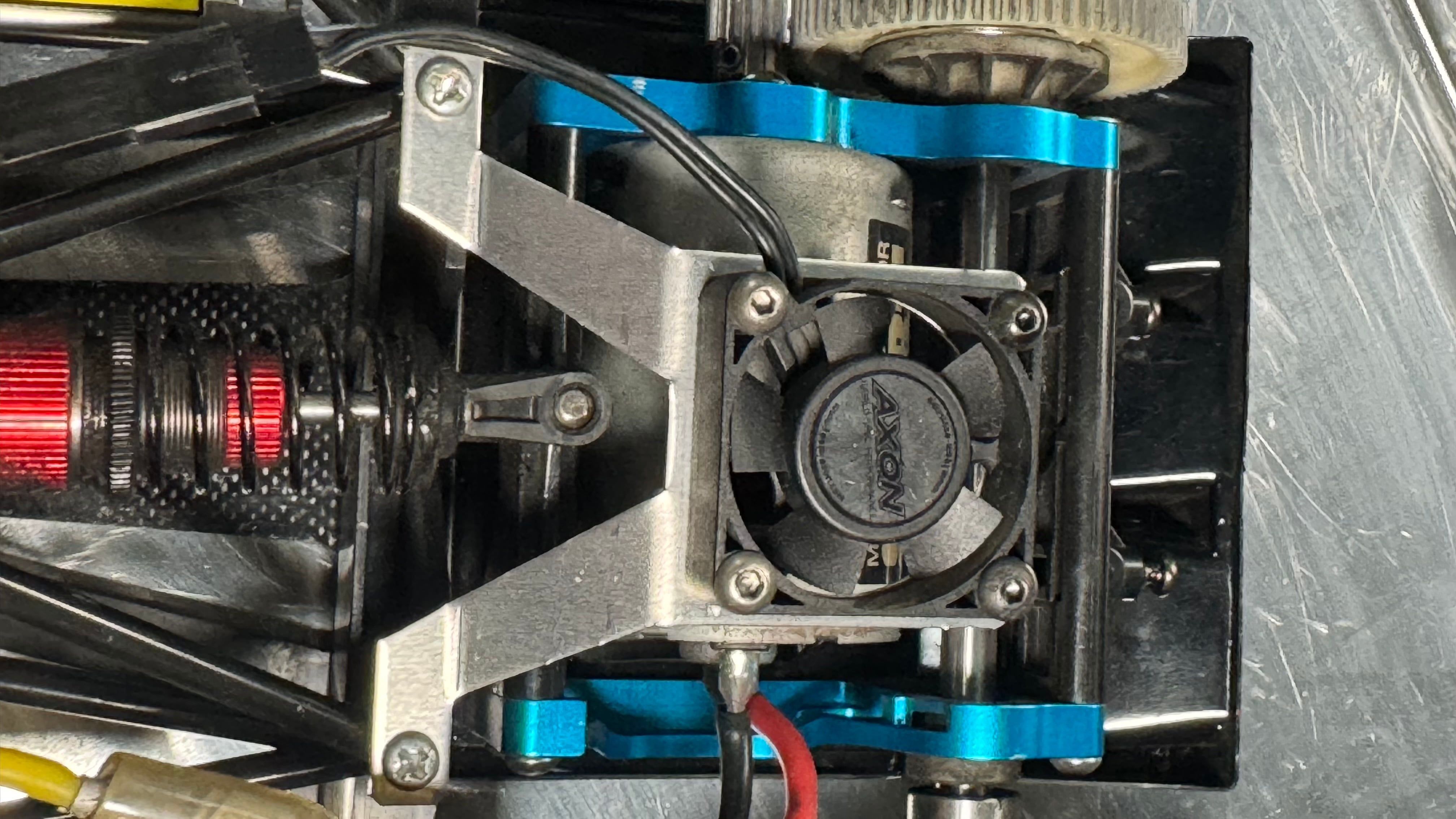

Rather than securing the fan bracket together with the gearbox, FANBoo CC is designed to mount together with the rear damper mounting arm on the chassis side.
Please use the existing Tamiya tapping screw:
MC4 M3 × 18 mm
to secure the bracket.
The cooling fan itself is sold separately and must be prepared by the user.
Please use M3 screws to attach your cooling fan to FANBoo CC.
Compatibility Information from a User!
We received some very useful information from one of our customers.
And this one made us very happy.
A Tamiya Group C car equipped with a:
KAWADA motor mount and tube damper setup
turned out to be an almost perfect fit!
A true Cinderella fit.

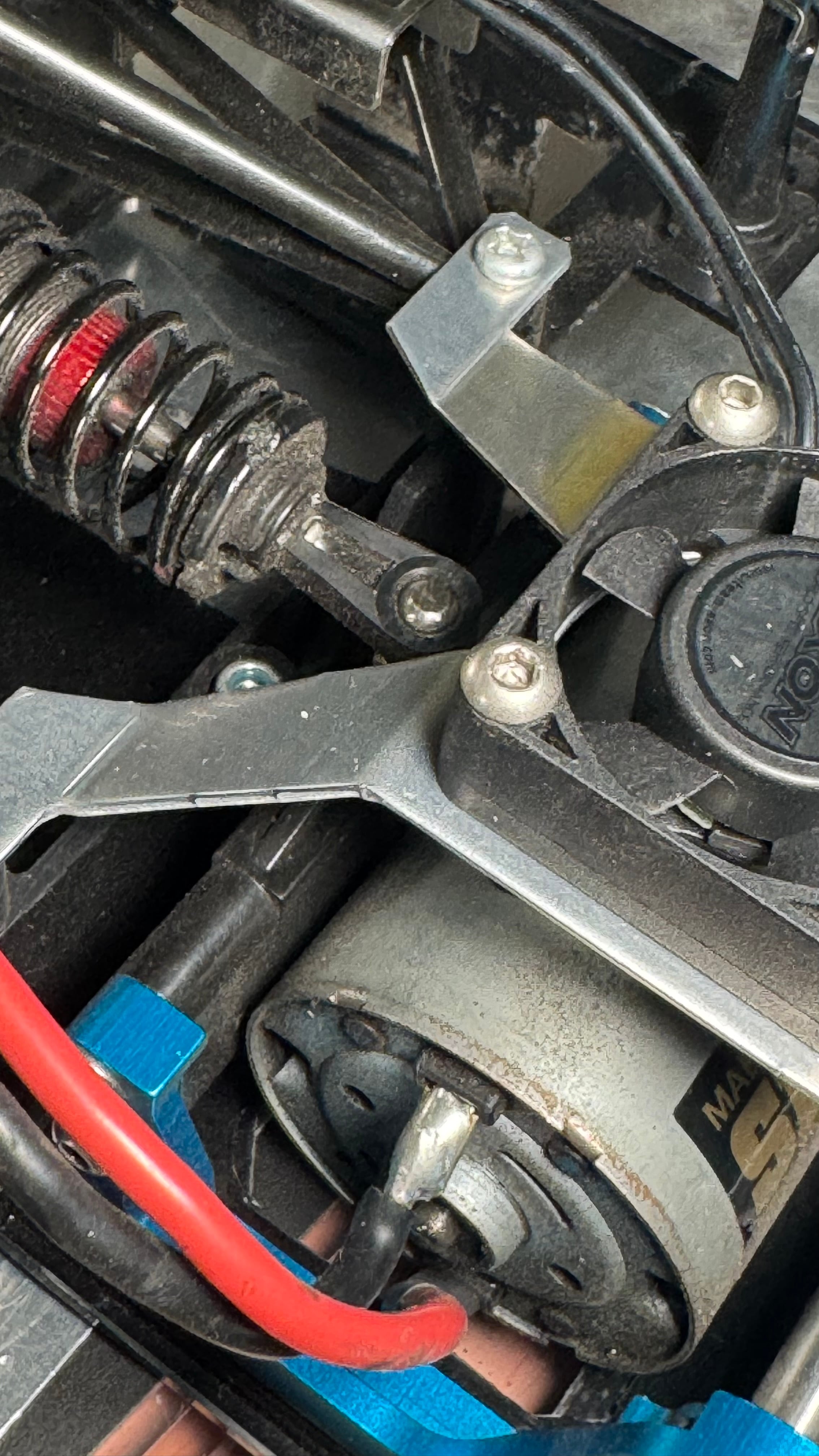

According to the user, FANBoo CC can be installed by positioning the fan bracket between the motor mount and the damper stay.
With this installation method, the bracket can be mounted without interference even when the chassis rolls during driving.
That was the information we received directly from the user.
So, KAWADA users…
This may be a very nice opportunity to add FANBoo CC to your machine!
Installation Difficulty
★★☆☆☆
Level 2 / 5
Installation is relatively simple.
Please confirm that the mounting holes align correctly with the existing parts before tightening everything into place.
For international shipping inquiries, please contact me directly through BASE messaging!

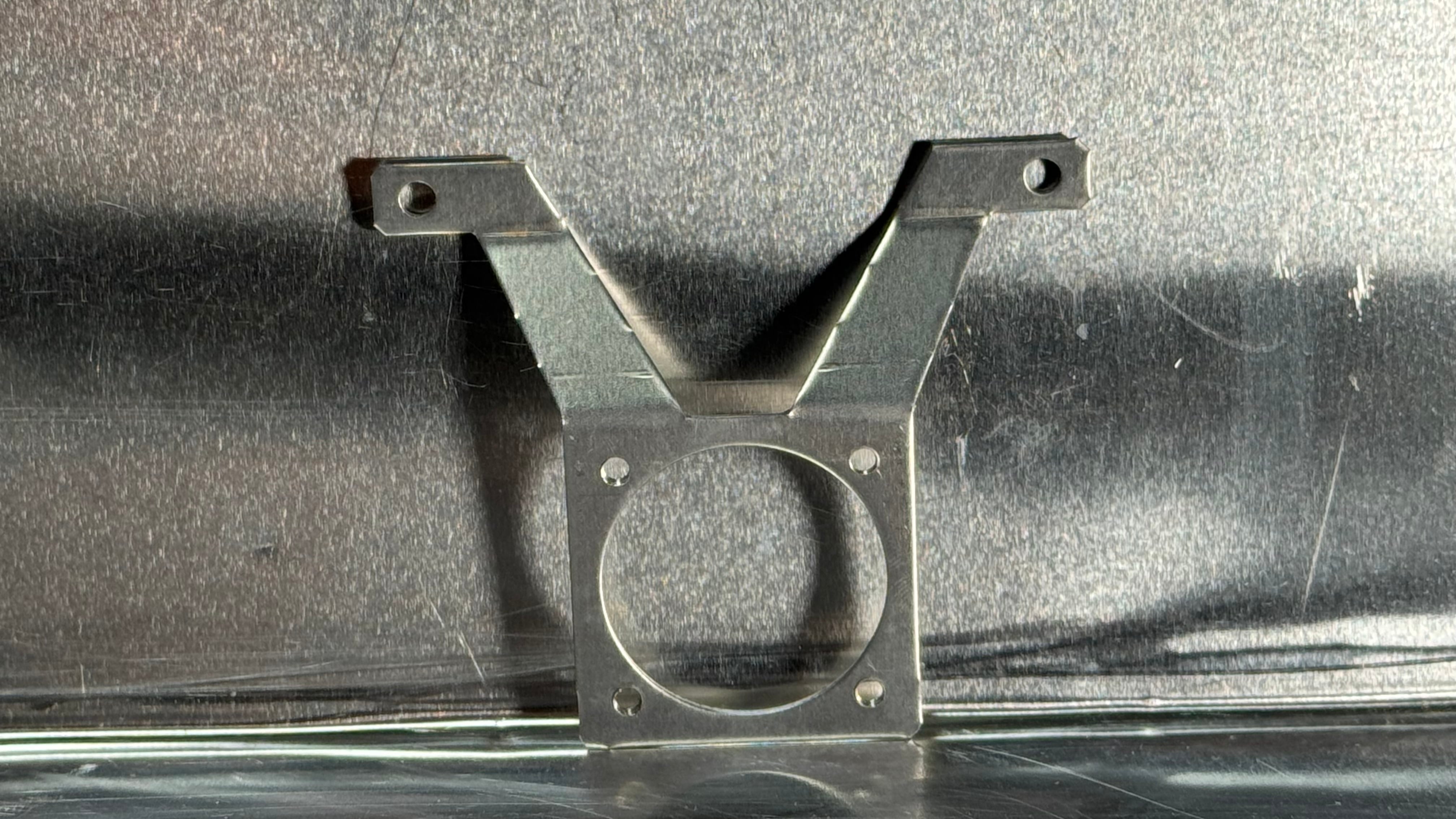

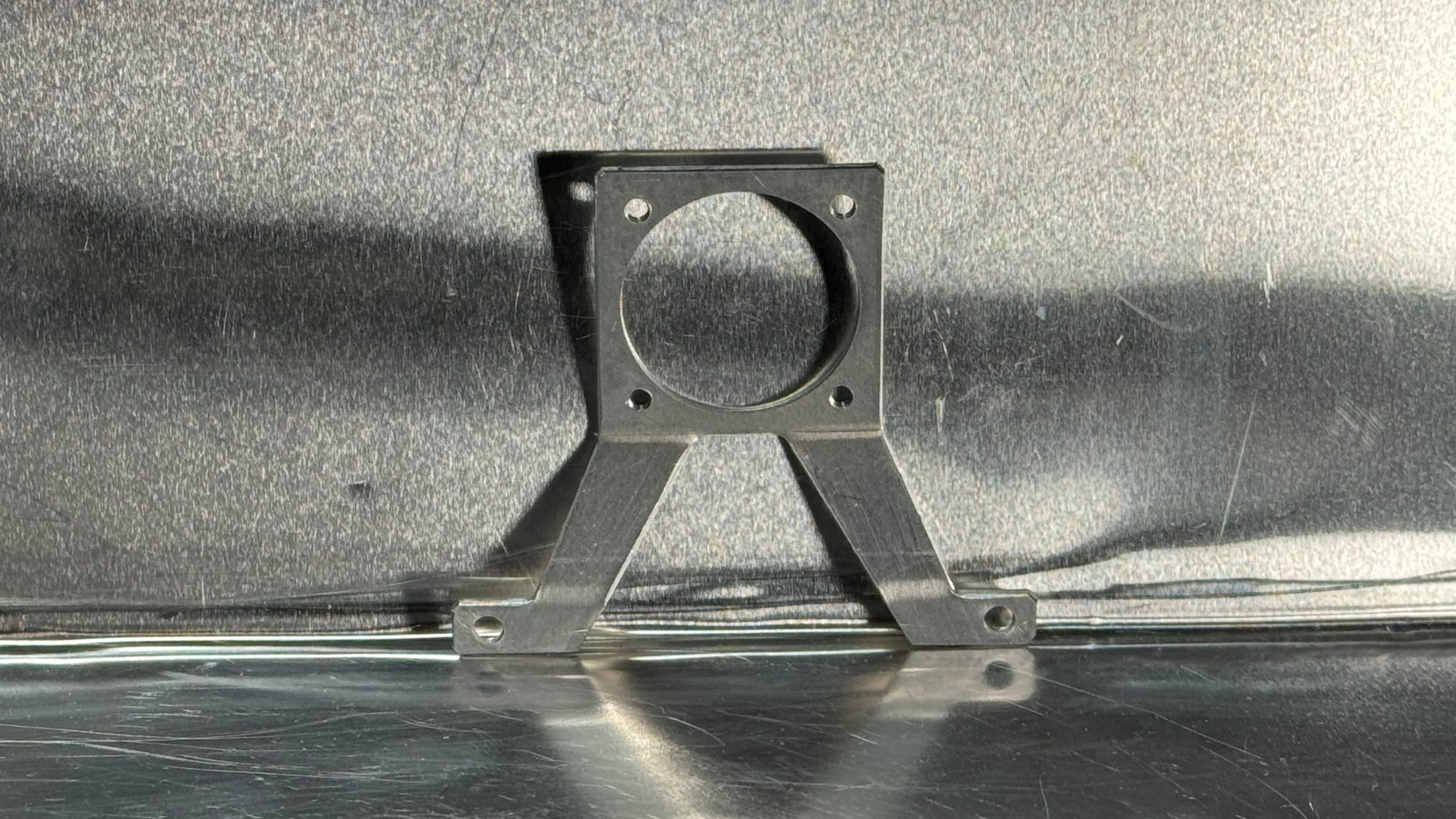

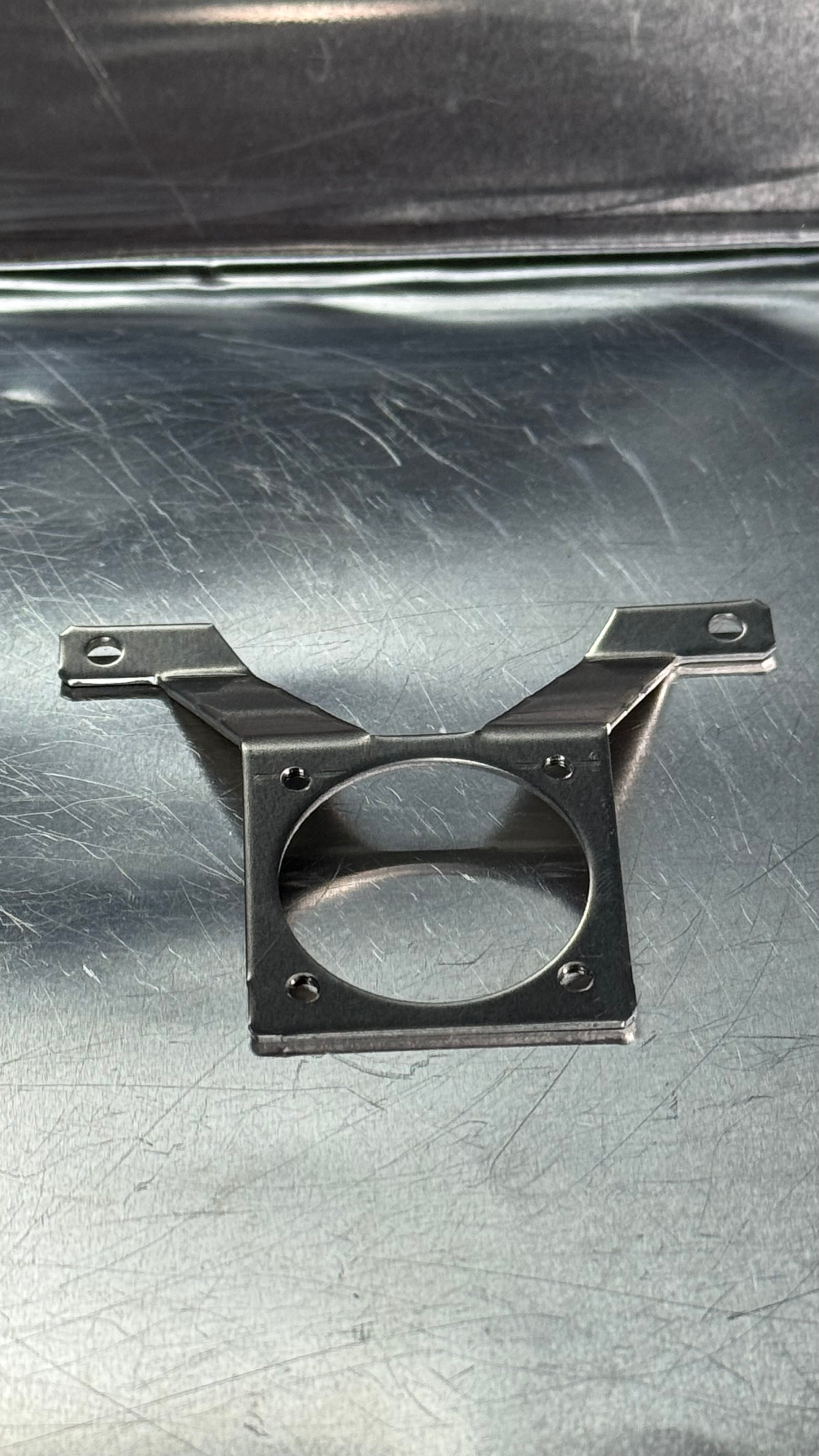

Specifications
Product Name: FANBoo CC
Product Code: BKCC-001
Material: Aluminum
Thickness: 1.5 mm
Quantity: 1 bracket
Compatible Chassis: Tamiya Group C Car chassis
Included Parts: FANBoo CC main bracket only
Shipping in Japan: Click Post ¥250
Product Notes
Because this is a sheet-metal component, minor scratches or processing marks may be present on the product surface as a result of manufacturing.
These marks do not affect product performance or functionality.
Please tighten the fan mounting screws gently.
The cooling fan position may need to be changed depending on the vehicle’s wheelbase (WB).
Caution
The product is made from aluminum.
Applying excessive force may bend or deform the bracket.
The threaded sections are also aluminum.
Over-tightening the screws may damage or strip the threads.
Please tighten carefully.
For best installation, mount the FANBoo CC body as horizontally and level as possible.
The cooling fan shown in any example installation photos is not included unless specifically stated otherwise.
-
