「ウィンピースC」（Win Peace C）/ タミヤ Cカー用
¥1,320($8.41)
International shipping available
2007年より再販を続けている、タミヤCカーシリーズ
単純と思われるシャーシ構造の中に、ロマンがたくさん詰まっているCカー。
その魅力にどっぷりとつかっている人のうちの一人でも私はあります。
販売当時とシャーシ構造が同じだからこそ、
奥が深く味わい深い１台。
「そんなCカーのウイングステイ根元に取り付けられる商品を開発しました。」
標準のウイングステイは、折れにくい樹脂を使用しています。
が、すこーしだけ頼りなく感じておりました。
Cカーの魅力は、３０年以上形を変えずに現代のオンロードサーキットでも
ぐんぐん遊べる一台です。
しかし、パワーソースも昔とは格段に変化した今。
ダウンフォースをもう少しだけ、力に変えたい。
そんな時、この子「ウィンピース」がお役に立つと思います！
（BKWP-001）
：開発コンセプト：
パワーソースが変化し、Cカーのスピードに比例されて増幅するダウンフォース。
このダウンフォースをより効率よくマシンに伝えたい。
コーナーでぶれるウイングが気になっていたので作りました。
バタついたウイングが気になって、アクセルを戻した場面もありました。
そんな場面を少しでも低減出来たら。
そして、ダウンフォースをもう少し受けきってもらいたい。
そんな思いで開発しました。
ウイングステイを全て板金で作ることも出来ますが、
大きなクラッシュや追突で二次災害の懸念もあるため、
そっと差し入れて、ムフフ。としてもらいたいです。
ん？適当なシャフトで代用できる？
はい、そう思います。
ただ、小職は板金の美しさと機能性を伝えていくためにメーカーを立ち上げたので
板金にこだわり、形状の試行錯誤を繰り返し開発しました。
あっ！M3のタップを底面に施していますので、
何か閃いた際にお使いください。
よろしくお願いいたします。
～組み込みは簡単～

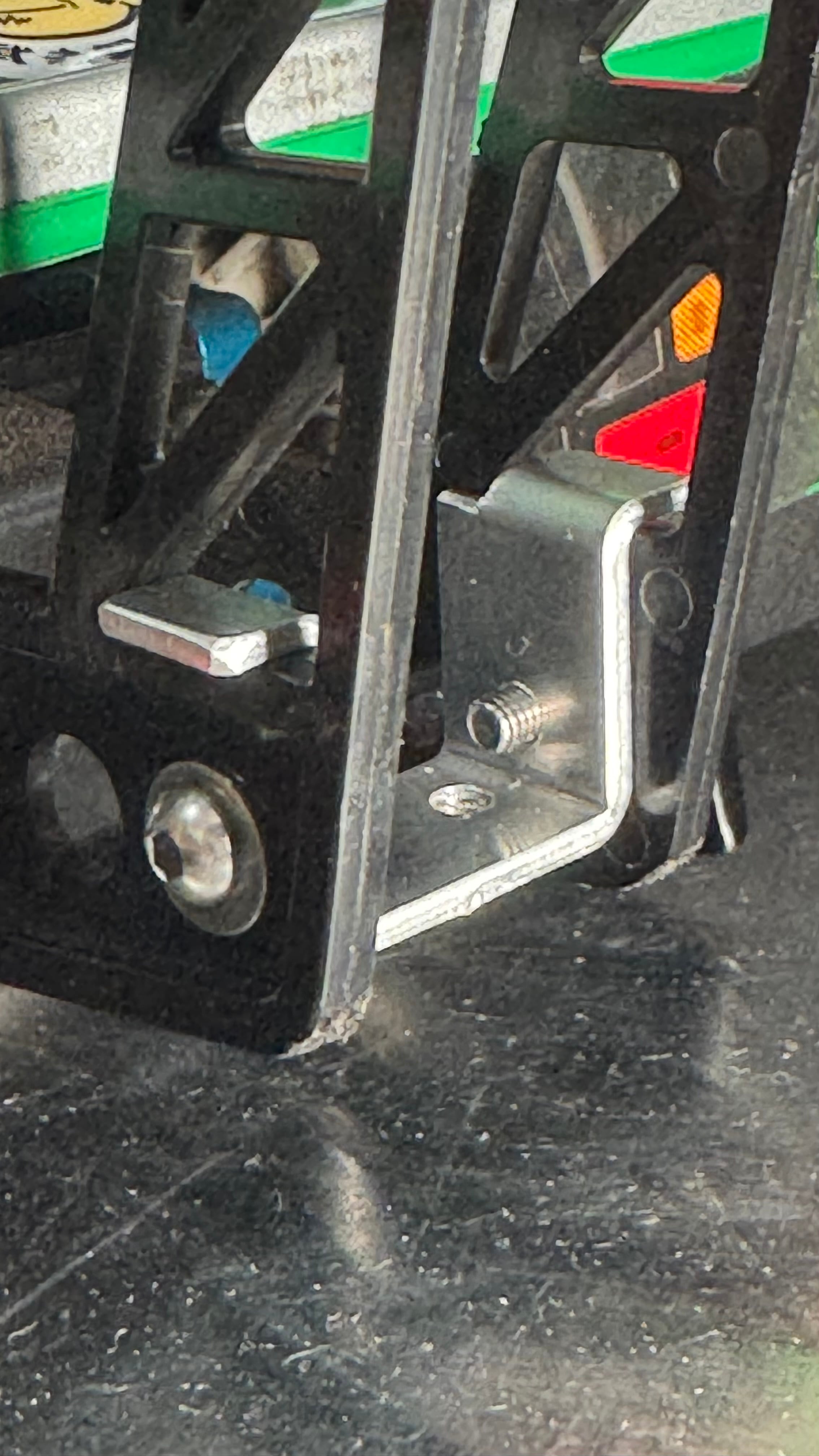

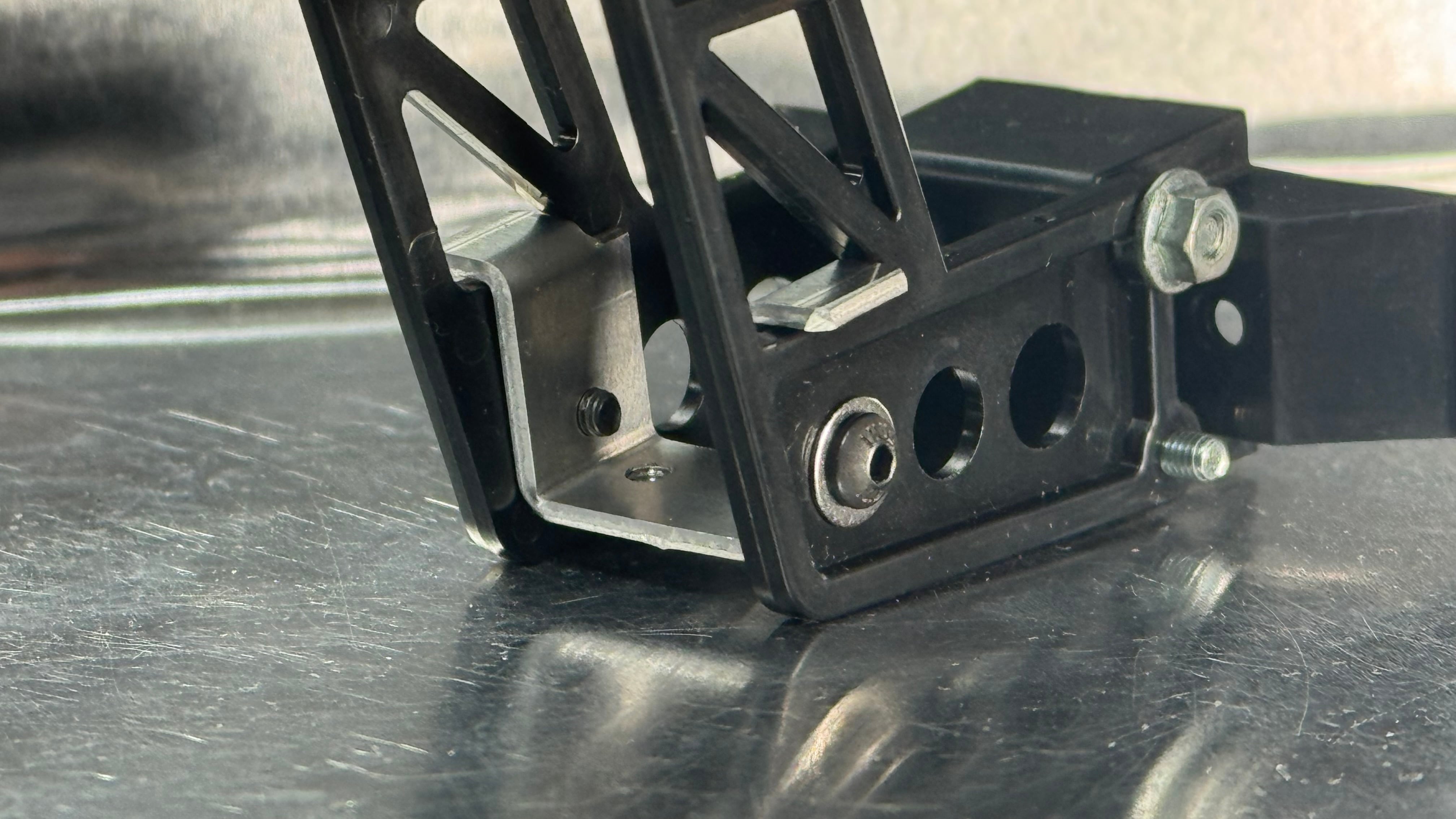

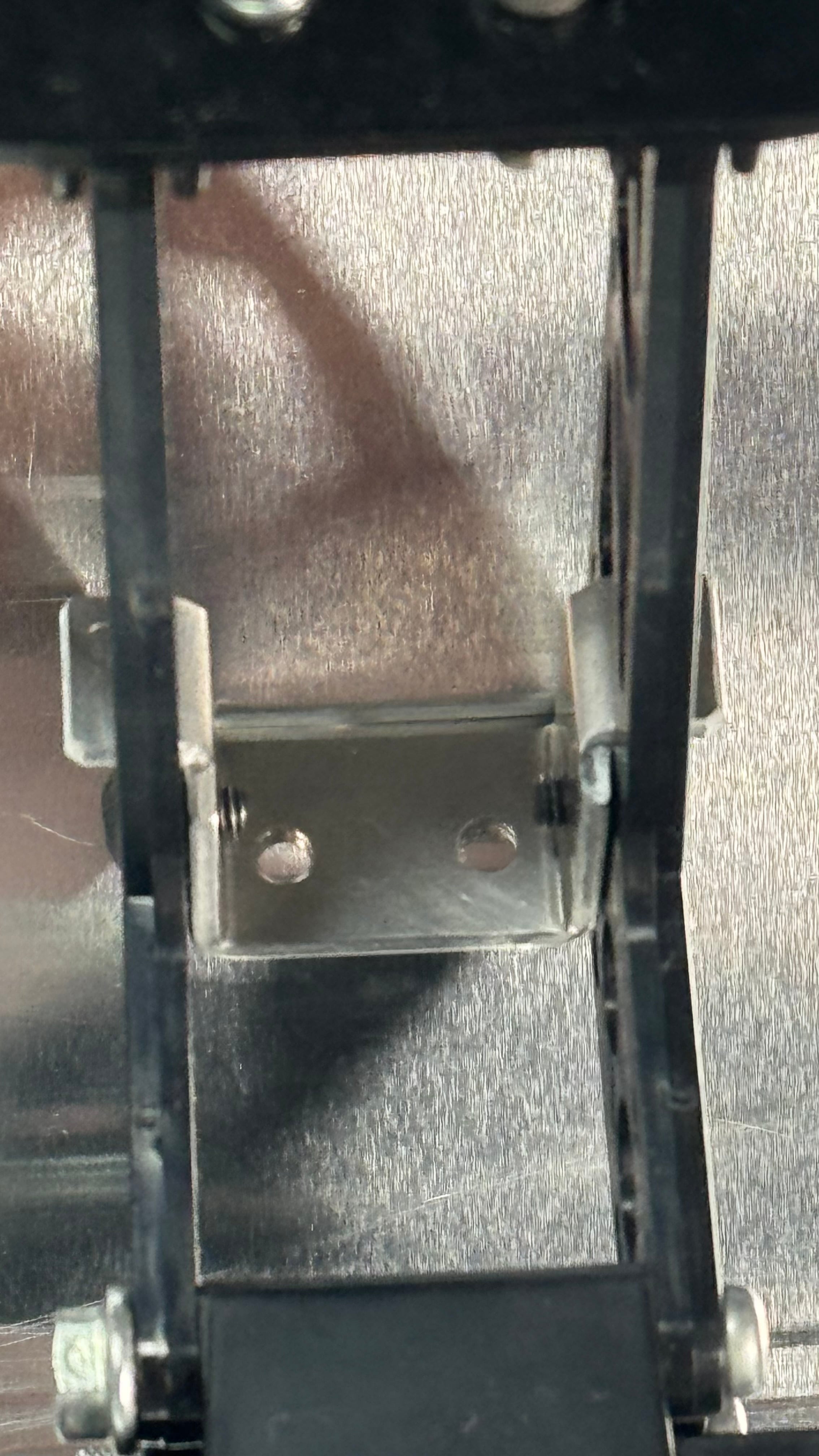

① ウィンピースをステイの内部に入れ込みます。
※切り欠きがフロント方向です。
② 付属のスペーサをウイングステイの左右の小穴に差し込みます。
※穴が変形している場合もありますので、垂直を意識して押し込みます。
③ ワッシャを置きM３のトラスねじで固定します。
※レンチにねじを指で押さえながらだと締め付けがしやすいです。

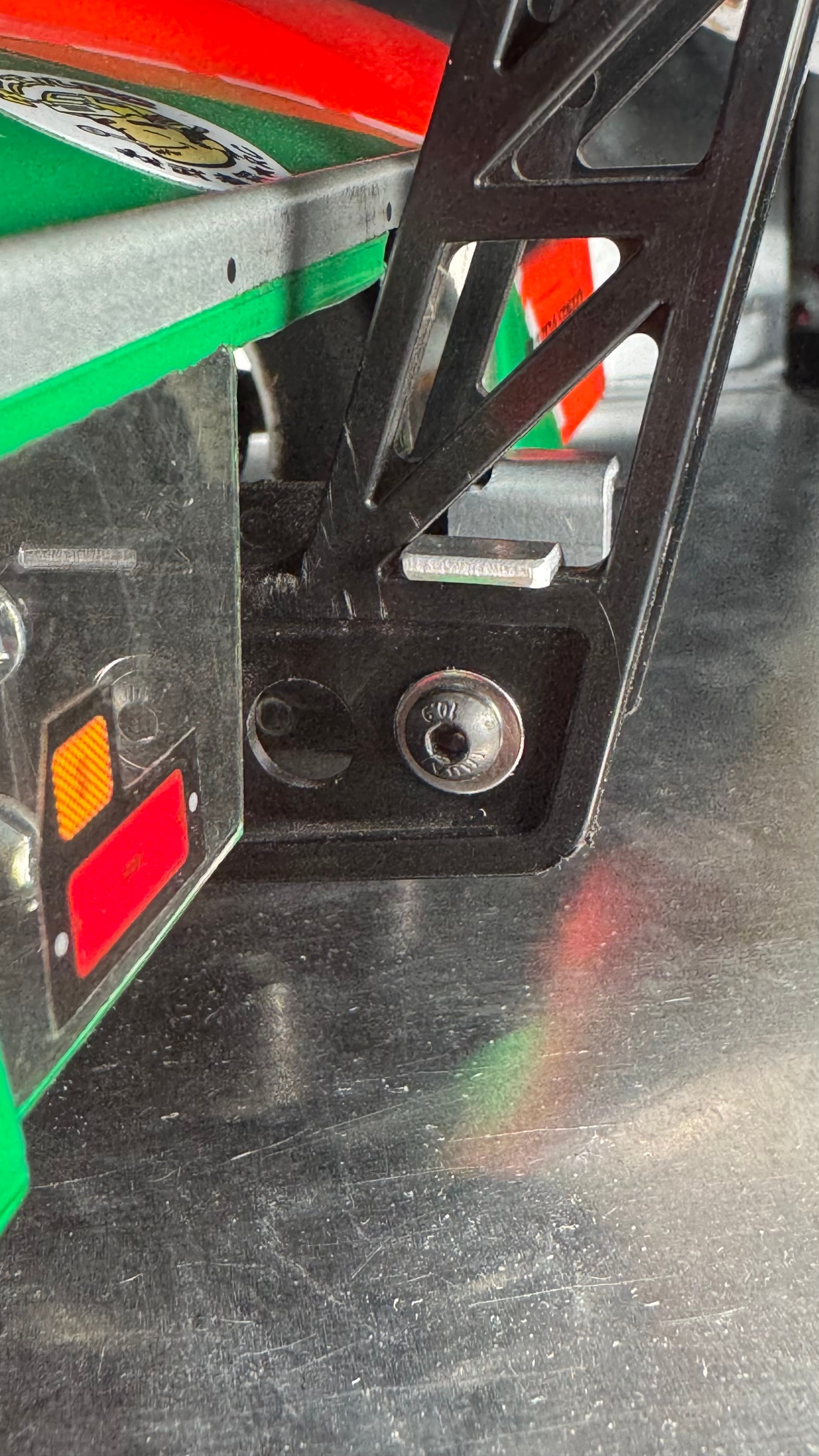

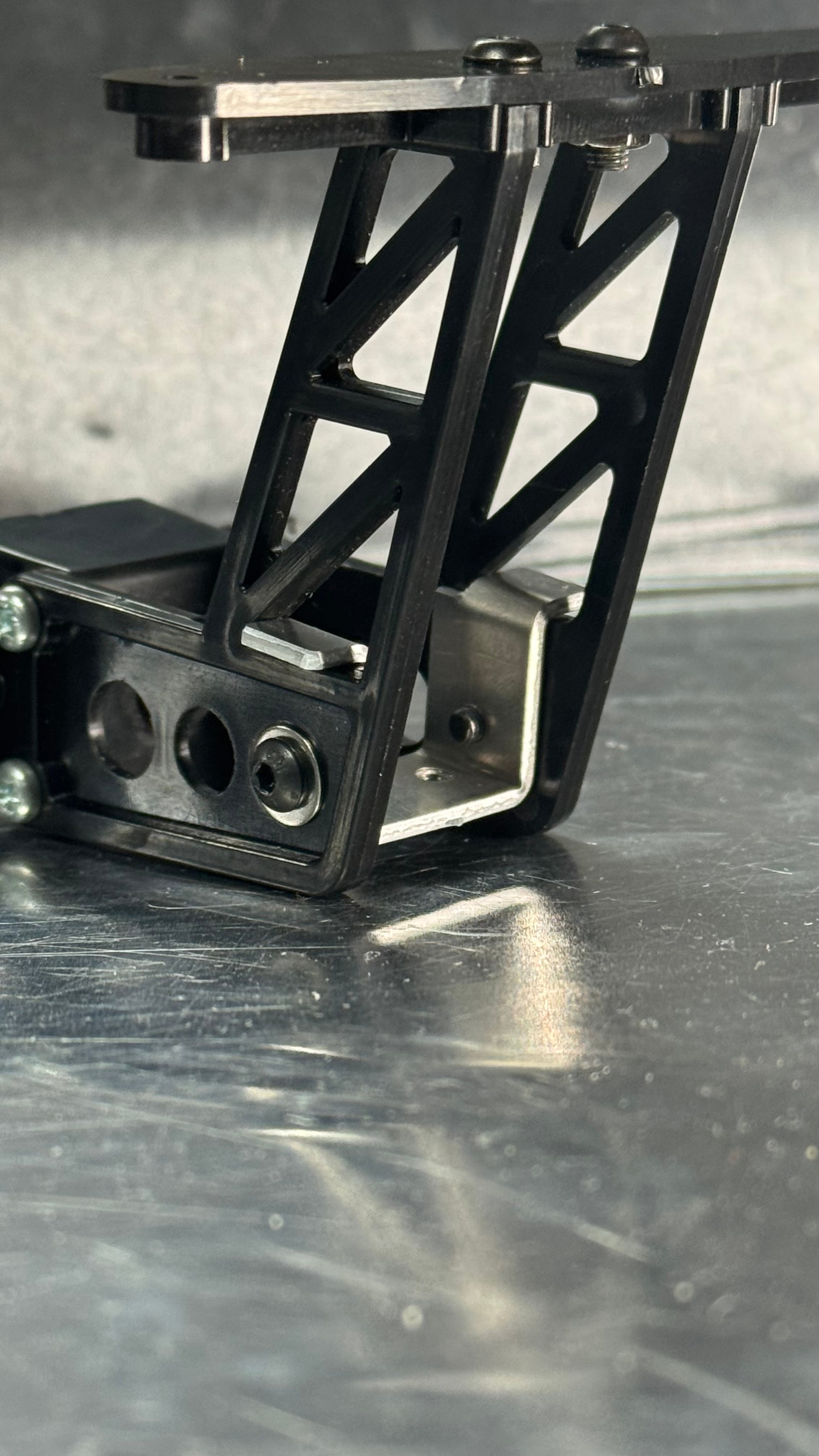

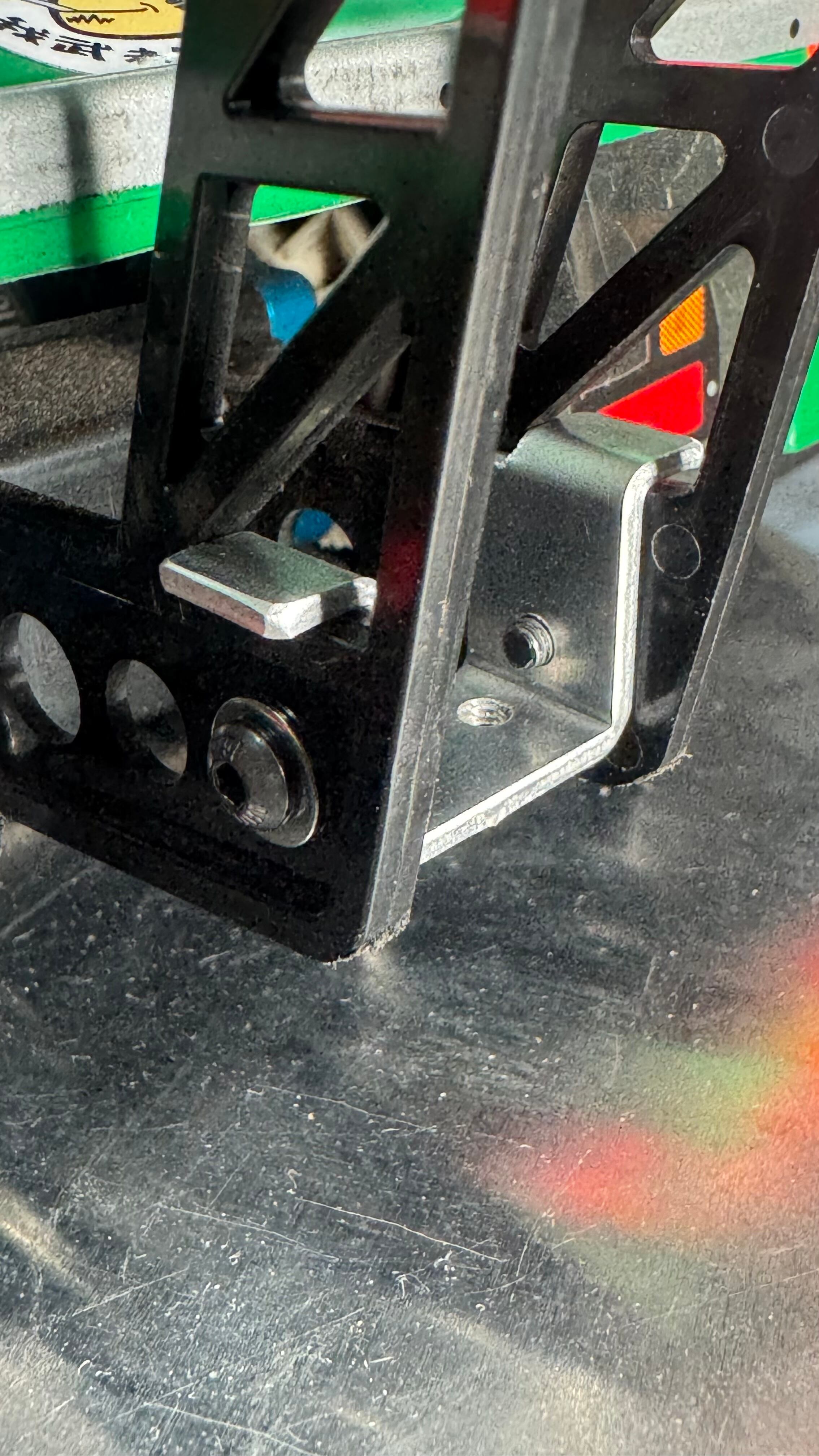

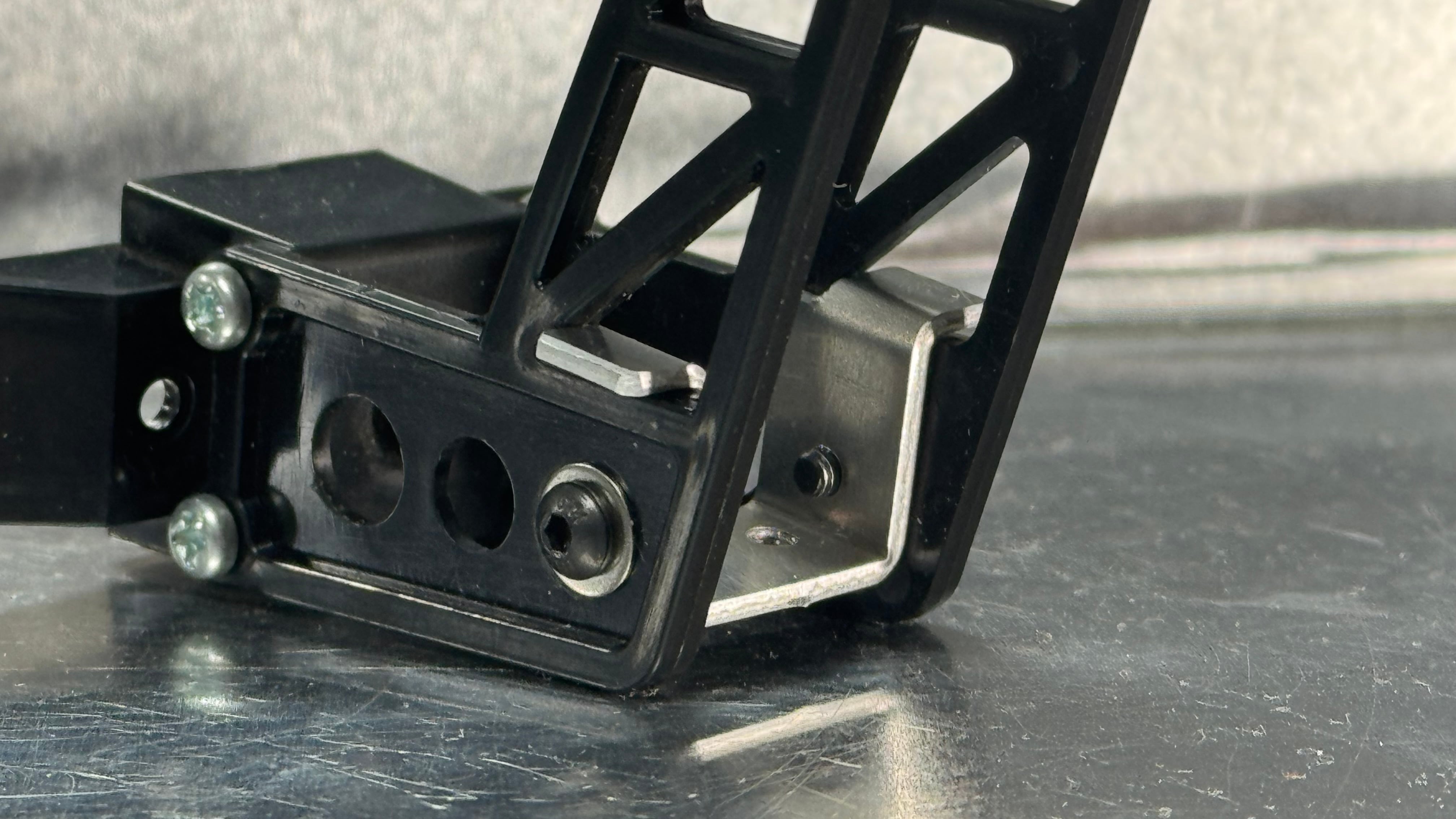

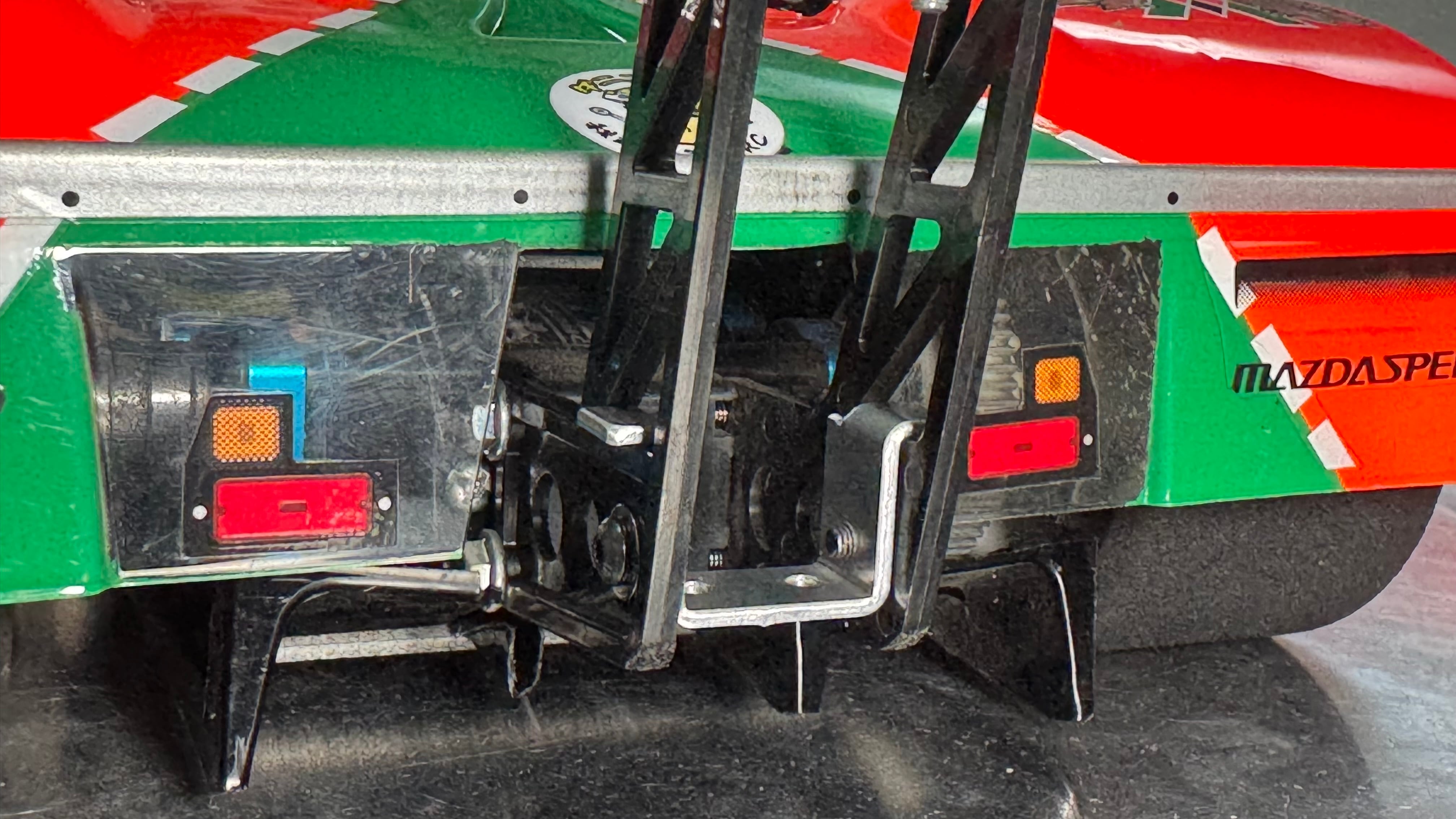

完成
ウィンピース本体が水平にとりつくように左右のねじを固定してください。
※本製品を取り付けた事によりセッティング変更がご必要になる場合があります。
取付難易度は★★★☆☆レベル３です。
※先に、本体をウイングステイの中に入れ込むと組み立て易いです。
※付属のスペーサーは極力垂直に押し込んでください。
※ワッシャーの組付けをお忘れないでください。
※ For international shipping inquiries, please contact me directly through BASE messaging!

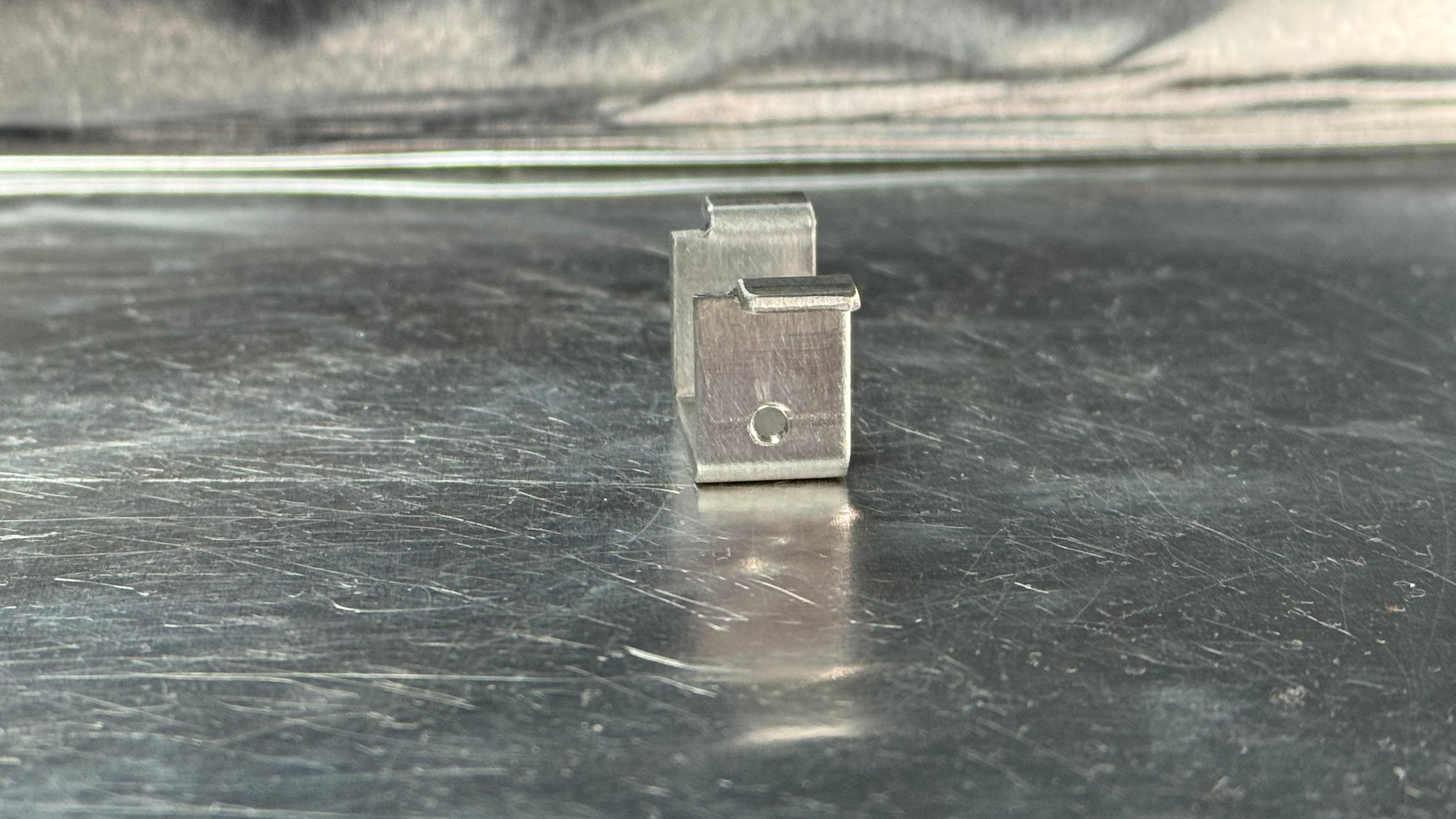

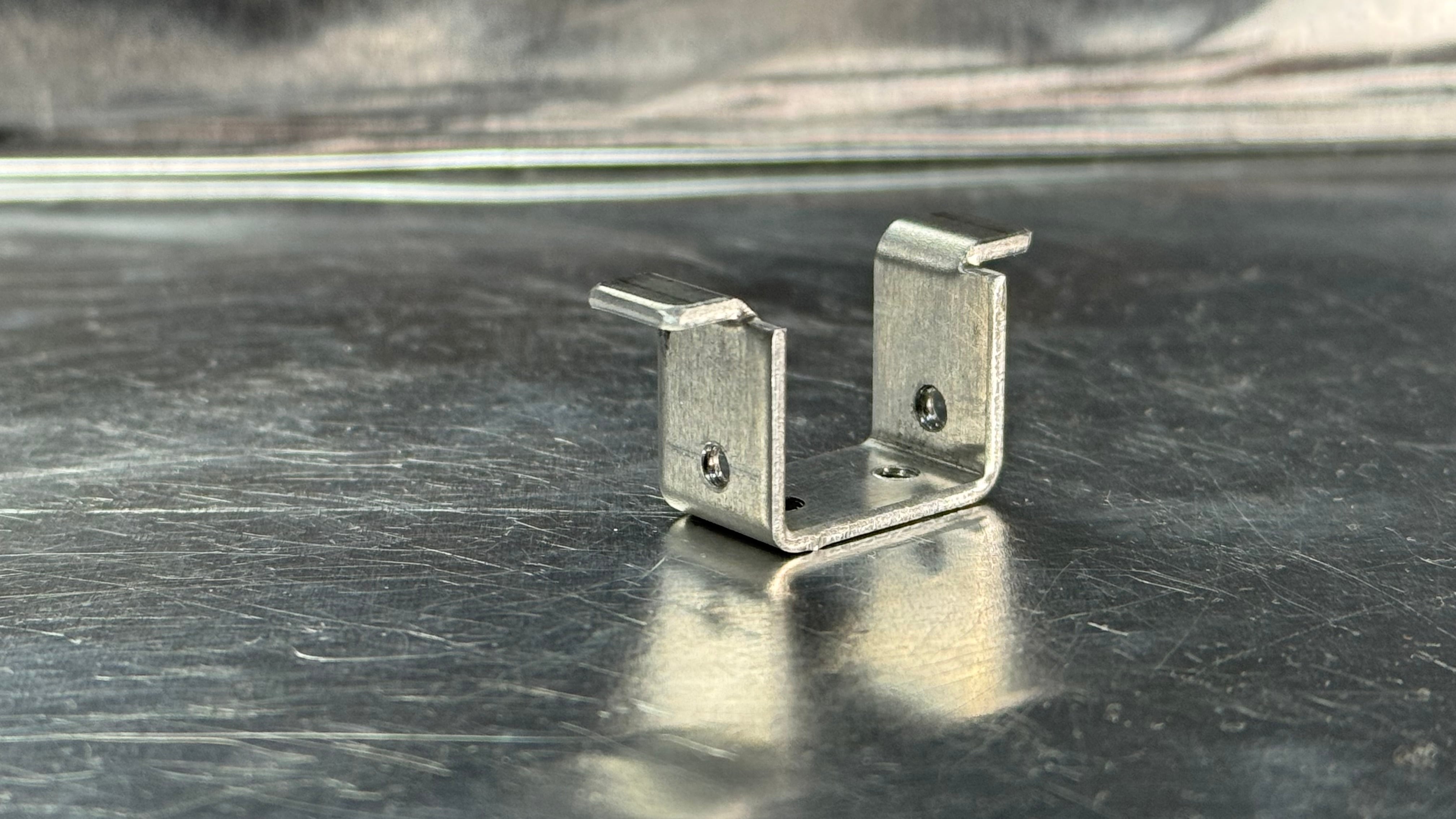

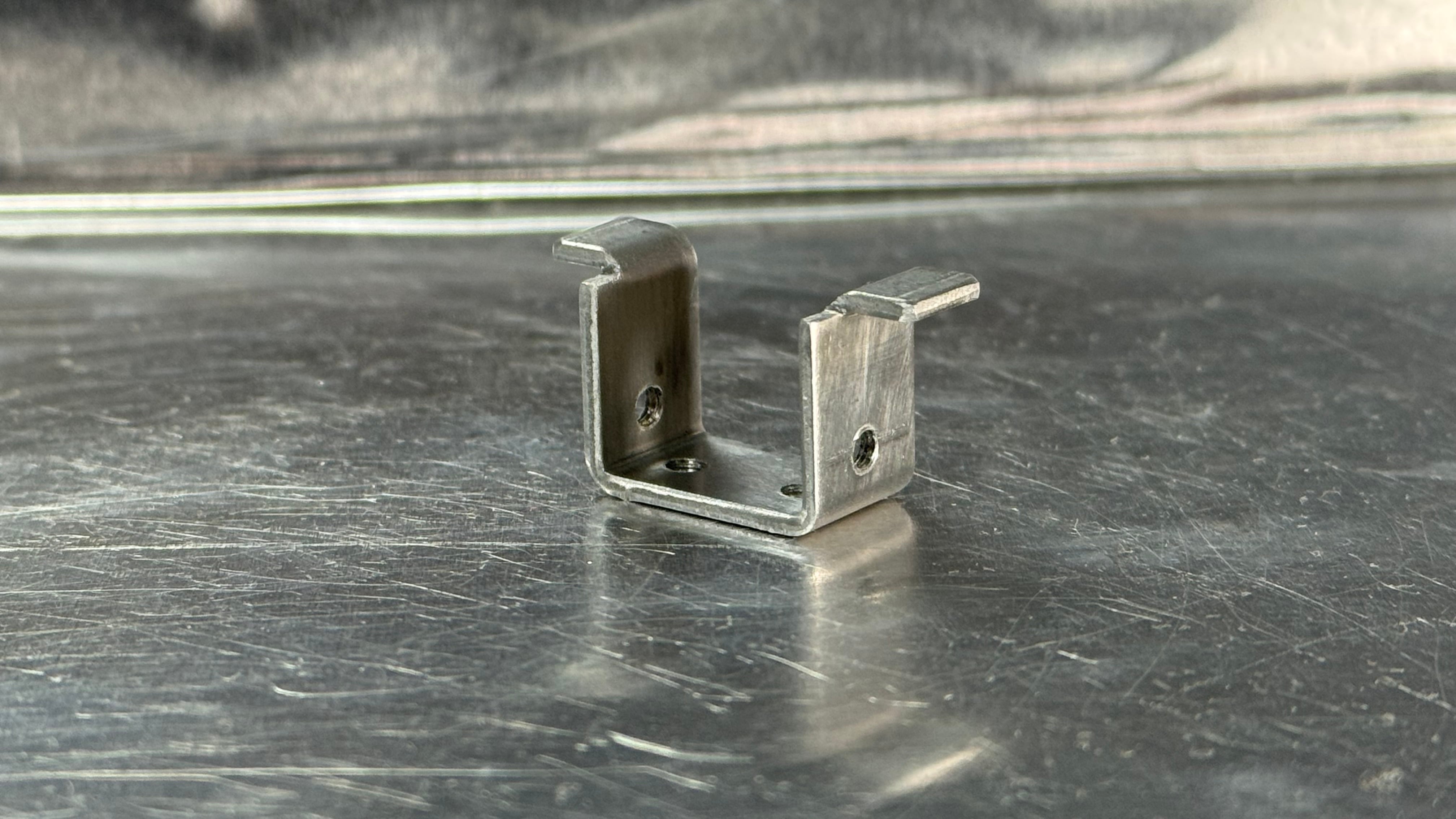

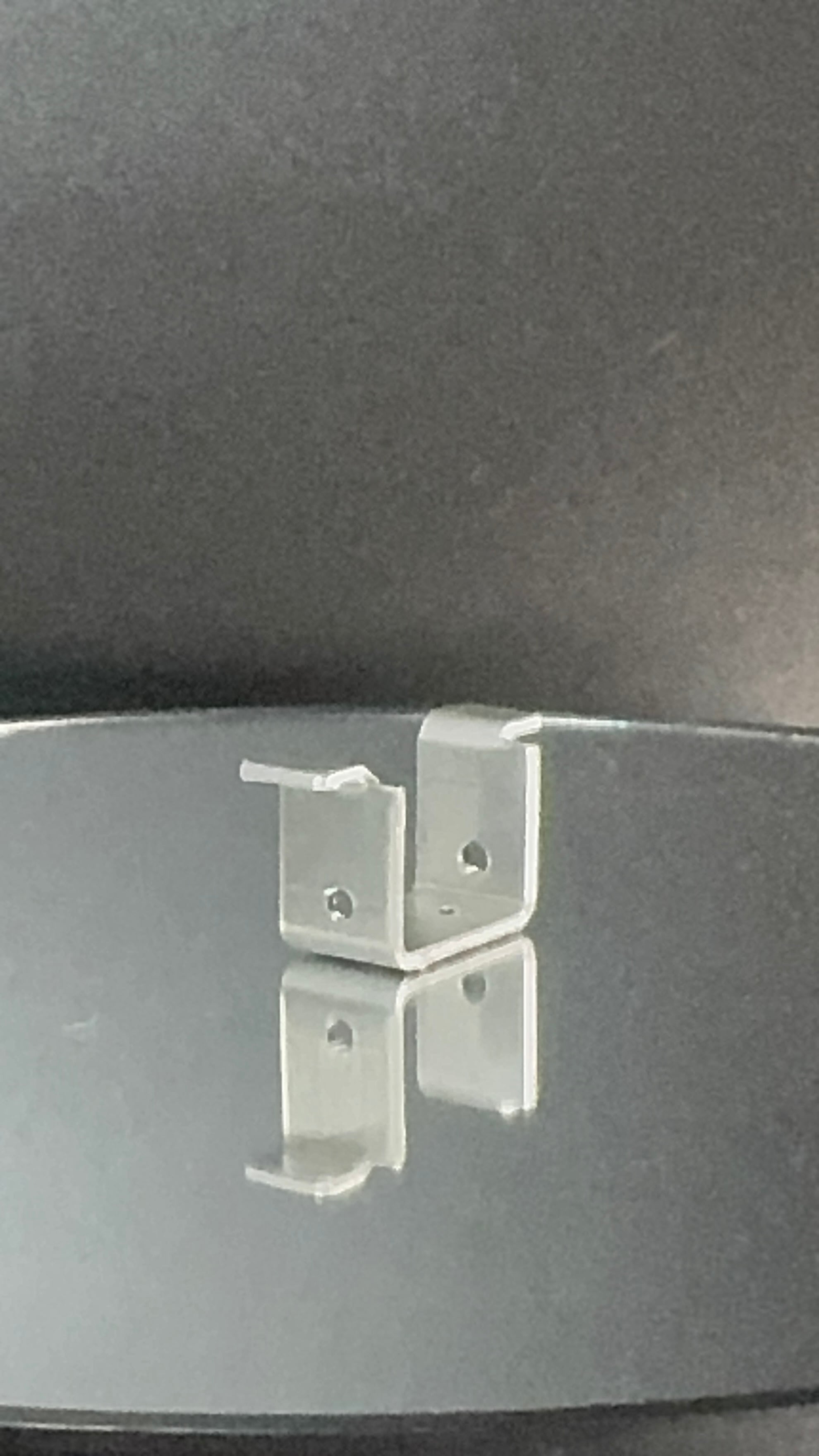

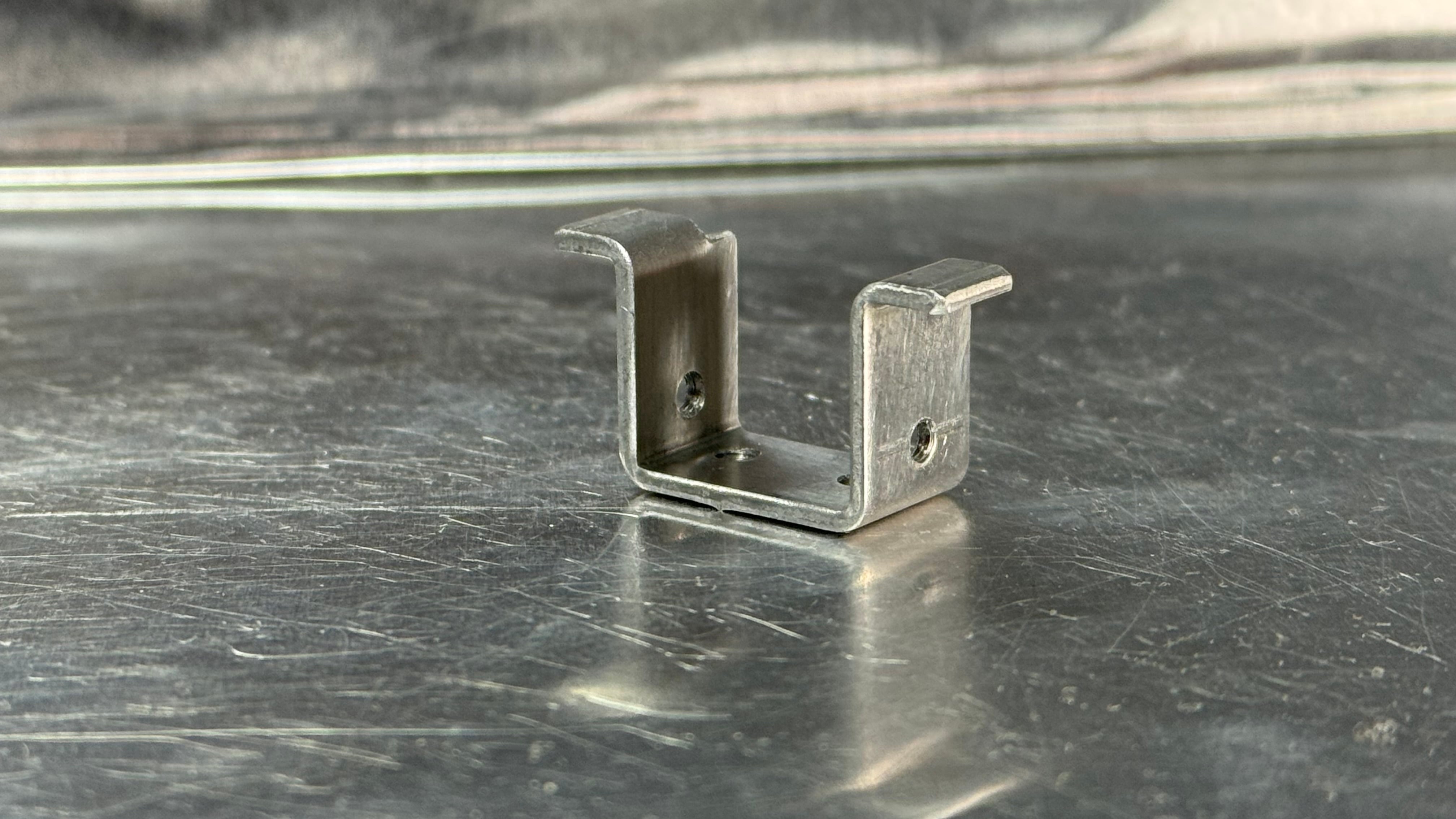

材 質：アルミ
板 厚：1.5ｔ
個 数：１ケ

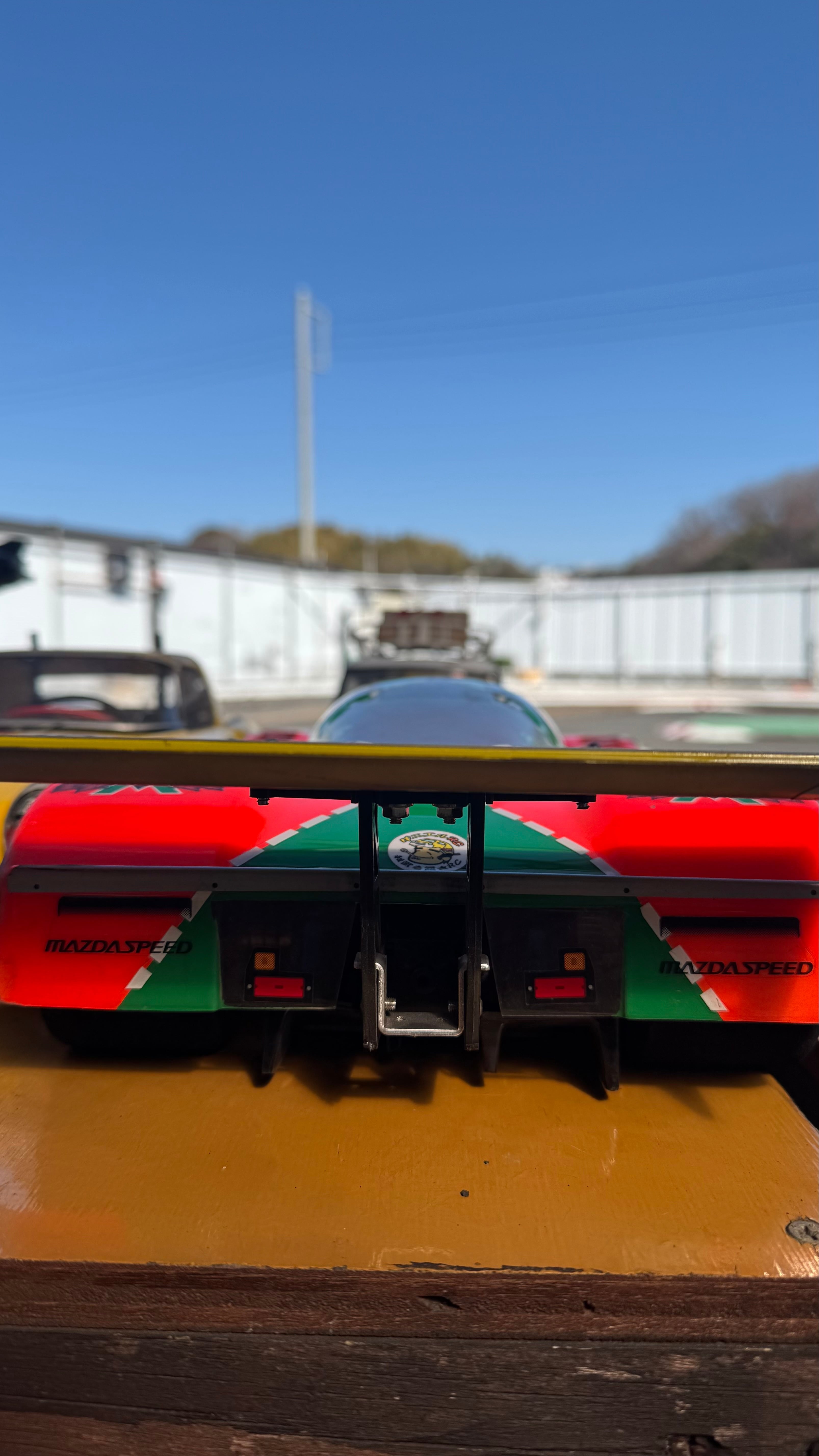

対 応：タミヤCカー TAMIYA Group C Car（C11 、787B、等）
標準ウイングステー使用

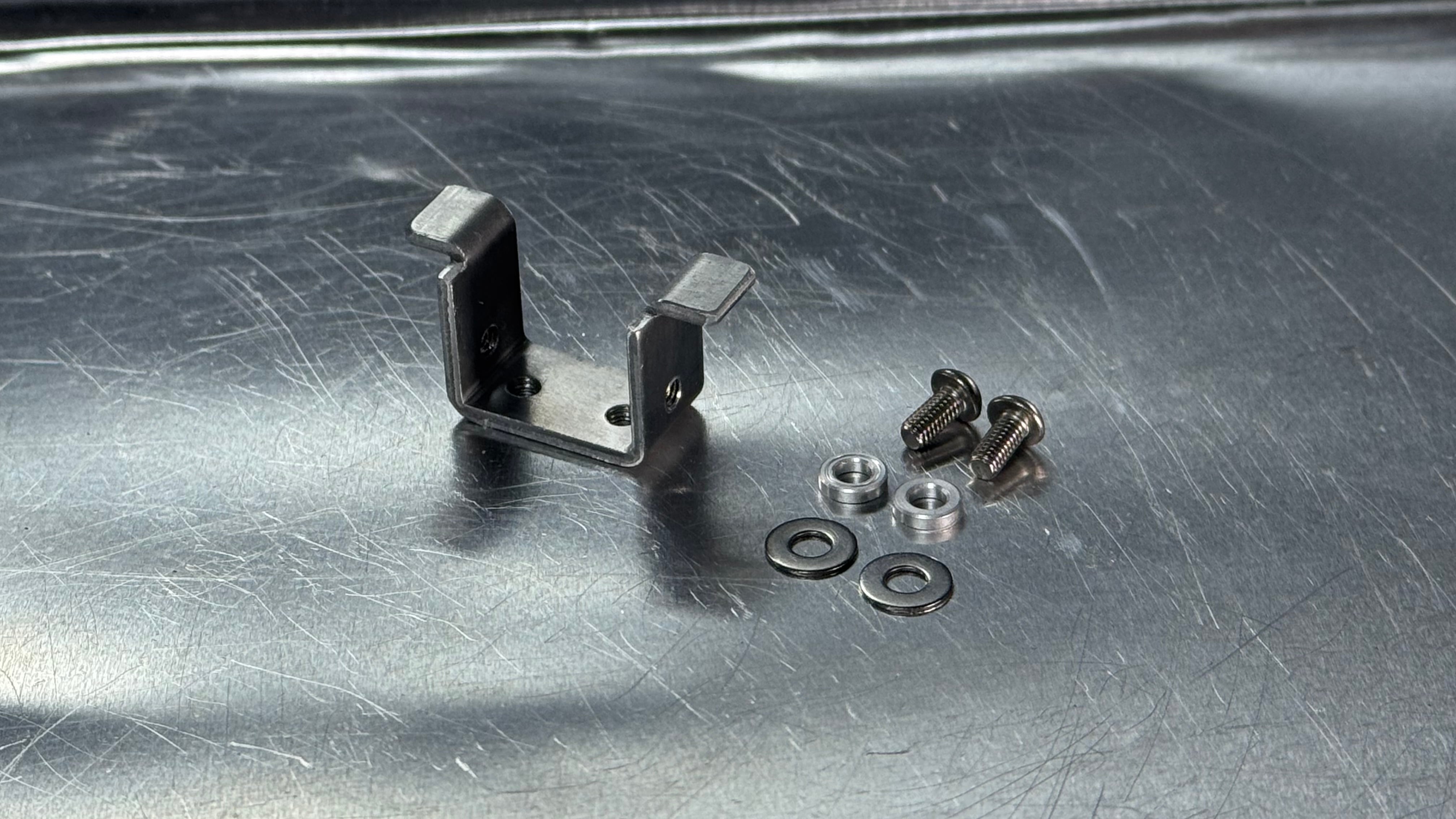

付属品：M３トラスねじ×２、M3用ワッシャ×２、1.5ｔスペーサー×２、
発 送：クリックポスト250円
仕 様：板金部品には製品面に加工上傷が入ることがあります。製品上問題はありません。
仕 様：スペーサーは垂直に押し込んでください。
注 意：素材はアルミです過度に力を加えると変形します。
注 意：素材はアルミです過度に締め付けるとタップが壊れます。
注 意：本体は極力水平を意識して取り付けしてください。
“Win Peace C” / For Tamiya Group C Cars
The Tamiya Group C series has continued to be reissued since 2007.
At first glance, the chassis structure may look simple.
But inside that simplicity is a huge amount of character, history, and pure RC romance.
I am one of the many people who have fallen deeply in love with these Group C cars.
Because the chassis design remains essentially the same as it was when these cars were originally released, they have a depth and personality that is difficult to explain until you actually drive one.
And now…
We developed a part that fits into the base area of the standard wing stay on Tamiya Group C cars.
The standard wing stay is made from a flexible resin that is difficult to break.
That is a very good thing.
But personally, I always felt it was just a little less rigid than I wanted.
One of the great attractions of Tamiya Group C cars is that, despite keeping essentially the same basic shape for more than 30 years, they can still be driven hard and enjoyed on modern on-road circuits.
But power systems have changed dramatically compared with the old days.
Speeds are higher.
And when speed increases, aerodynamic downforce also increases.
I wanted to make just a little more use of that force.
That is where this little guy comes in:
Win Peace C
BKWP-001
Development Concept
As power systems have evolved, the speed of Group C cars has increased.
And as speed rises, the amount of downforce generated by the wing also increases.
I wanted to transmit that downforce to the chassis more efficiently.
The original inspiration came from watching the wing move and shake during cornering.
There were even times when I found myself backing off the throttle simply because the wing movement was bothering me.
If I could reduce that movement, even just a little…
And if the wing could accept and transfer just a little more of that downforce…
That was the starting point for this product.
Of course, it would also be possible to manufacture the entire wing stay from sheet metal.
However, in the event of a major crash or rear impact, a fully rigid metal stay could potentially cause additional damage elsewhere.
So instead, I wanted to create something more subtle.
Something you simply slide into the standard wing stay…
and then quietly smile to yourself.
Mufufu.
You may be thinking:
“Couldn’t I just use some random shaft or rod instead?”
Yes.
Honestly, you probably could.
But I started BAnkyRC because I wanted to communicate the beauty, precision, and functionality of sheet-metal parts.
So I insisted on making this from sheet metal.
I experimented with the shape again and again until I arrived at this design.
And one more small detail:
There is an M3 threaded hole on the bottom of the main body.
If inspiration strikes and you think of another way to use it, please feel free to get creative.
That is part of the fun.
Easy Installation
1. Insert Win Peace C into the inside of the wing stay.
The notched section should face toward the front of the car.
2. Insert the included spacers into the small holes on the left and right sides of the wing stay.
The holes may have become slightly distorted over time, so try to push the spacers in as vertically and straight as possible.
3. Place the washers in position and secure everything using the included M3 truss-head screws.
It may be easier to tighten the screws if you hold each screw against the wrench with your finger while starting the thread.
Installation complete.
Please tighten the left and right screws while making sure the Win Peace C main body is installed as horizontally as possible.
Important Information
Installing this product may change the behavior of the rear wing and chassis.
Depending on your vehicle setup and driving style, you may need to make additional setup adjustments after installation.
Installation Difficulty
★★★☆☆
Level 3 / 5
* It is easier to assemble if you insert the main Win Peace C body into the wing stay first.
* Push the included spacers in as vertically as possible.
* Do not forget to install the washers.
* Please install the main body as level and horizontal as possible.
For international shipping inquiries, please contact me directly through BASE messaging!
Specifications
Product Name: Win Peace C
Product Code: BKWP-001
Material: Aluminum
Thickness: 1.5 mm
Quantity: 1 main unit
Compatible Models: Tamiya Group C Cars using the standard wing stay
Examples include: Sauber Mercedes C11, Mazda 787B, and other compatible Tamiya Group C models
Included Parts:
* 2 × M3 truss-head screws
* 2 × M3 washers
* 2 × 1.5 mm spacers
Shipping in Japan: Click Post ¥250
Product Notes
Because this is a sheet-metal component, minor scratches or processing marks may be present on the product surface as a result of manufacturing.
These marks do not affect product performance or functionality.
The included spacers should be pushed in as vertically as possible.
Caution
The product is made from aluminum.
Applying excessive force may bend or deform the part.
The threaded sections are also aluminum.
Over-tightening the screws may damage or strip the threads.
Please tighten carefully.
For best performance, install the Win Peace C main body as horizontally and level as possible.
-
